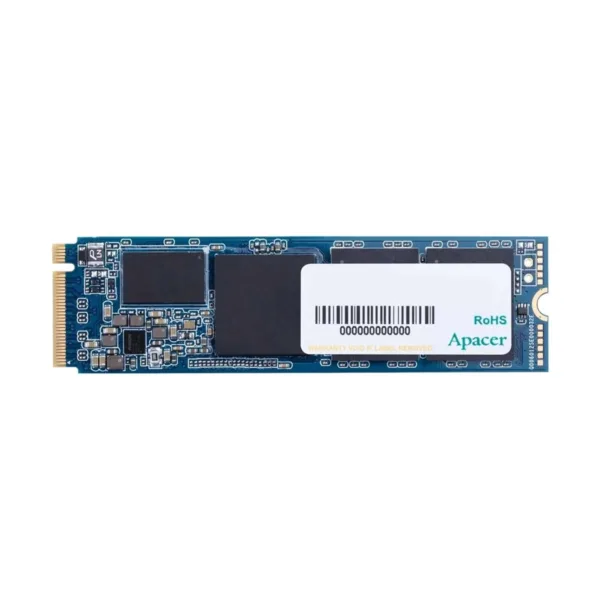

Apacer AS2280P4 512GB M.2 2280 PCIe SSD
Model : Apacer AS2280P4
Storage Capacity : 512GB
Type : M.2 SATAIII SSD
Interface : PCIe Gen3 x4
Read Speed : 3000MB/s
Form Factor : M.2 2280
Write Speed : 2000MB/s
Warranty : 3 year
Additional information
| Brand | Apacer |
|---|---|
| Model | Apacer AS2280P4 |
| Type | Internal SSD |
| Part No | AP512GAS2280P4-1 |
| Storage | 512GB |
| Interface(s) | PCIe Gen3 x4 |
| Flash Type | 3D TLC NAND flash |
| Read Speed (Max.) | 3000MB/s |
| Write Speed (Max.) | 2000MB/s |
| Shock Resistance | 1500G/0.5msec |
| TRIM Support | Yes |
| S.M.A.R.T Support | Yes |
| MTBF | 1,500,000 hours |
| Power Consumption | 4000 mW (Active mode), 70mW (Power State) |
| Form Factor (Inch) | M.2 2280 |
| Dimensions | 80 x 22 x 2.38 mm |
| Weight | 6.80 gm |
| Warranty | 3 year |
| Others | Vibration: 7 – 800Hz, 3.08Grms, Operating Temperature: 0 degree C – 70 degree C, Storage: -40 degree C – 85 degree C, Supply Voltage: 3.3 V +- 5%, Connector Type: 75-pin M.2 module pinout, Frequency: 20Hz – 80Hz, Certificate: KCC, CE, FCC, VCCI, RCM, BSMI |
| Specialty | The AS2280P4 SSD has built-in protection technology to ensure data integrity and stability, It is definitely the top choice for ultra-thin Laptops, e-sports consoles, and mini-PCs. |
| Country Of Origin | Taiwan |
| Made in/ Assemble | Taiwan |
