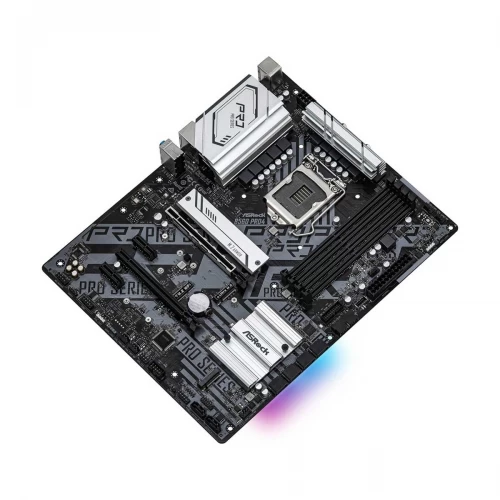

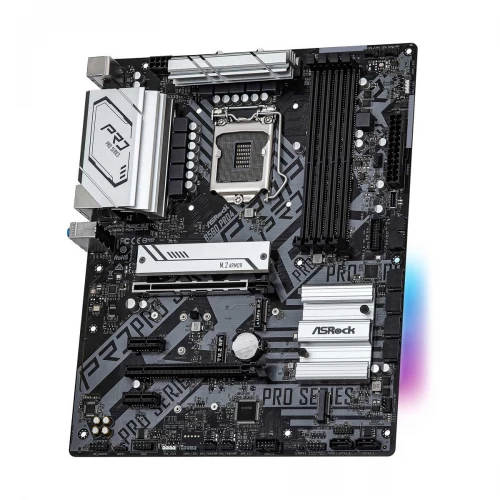

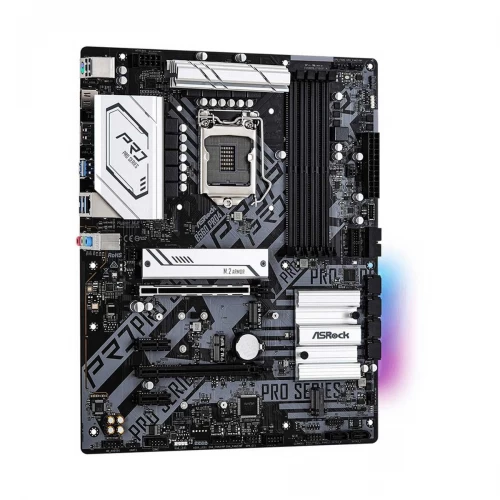

ASRock B560 Pro4 DDR4 10th/11th Gen ATX Intel Motherboard
Model : ASRock B560 Pro4
Chipset : Intel B560
Memory Slot : 4
Supported CPU : Core i9, i7, i5, i3, Pentium, Celeron
Generation : 10th/11th
Features : This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Warranty : 3 year
Additional information
| Brand | ASRock |
|---|---|
| Model | ASRock B560 Pro4 |
| Chipset Brand | Intel |
| Chipset | Intel B560 |
| Sockets Supported | LGA1200 |
| Supported CPU | Core i9, i7, i5, i3, Pentium, Celeron |
| Generation | 10th/11th |
| Memory Type | DDR4 |
| Memory MHz | 11th Gen up to 4800+(OC), 10th Gen up to 4600+(OC) |
| Memory Channel | Dual |
| Memory Slot (Additional Info) | 4 |
| Memory Max. | 128GB |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 3 |
| Graphics | Integrated Graphics |
| PCI Express Slot | 2 x PCI Express x16 Slots, 2 x PCI Express 3.0 x1 Slots |
| Audio Chipset. | Realtek ALC897 Audio Codec |
| Audio Channel | 7.1 |
| LAN Chipset | Intel I219V |
| LAN Speed (Mbps) | 10/100/1000 Mb/s |
| USB Port | 6 x USB 3.2 Gen 1, 3 x USB 2.0 |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 6 |
| TPM Port | 1 |
| COM Port | 1 |
| RGB Support | Yes |
| RGB Sync | Polychrome SYNC |
| RGB Connector | 2 x RGB LED Headers |
| Form Factor | ATX |
| BIOS Type | 128MB Flash |
| BIOS Model | AMI UEFI Legal BIOS |
| BIOS Version | ACPI 6.0, SMBIOS 2.7 |
| Supported Operating System | Windows 10 |
| Warranty | 3 year |
| Feature | This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well. |
| Others | 2 x Addressable LED Headers, 1 x CPU Fan Connector, 1 x CPU/Water Pump Fan Connector, 5 x Chassis/Water Pump Fan Connectors, 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector, 3 x Antenna Mounting Points, 1 x PS/2 Mouse/Keyboard Port, 1 x RJ-45 LAN, HD Audio Jacks: Line in / Front Speaker / Microphone, Certifications: FCC, CE, ErP/EuP |
