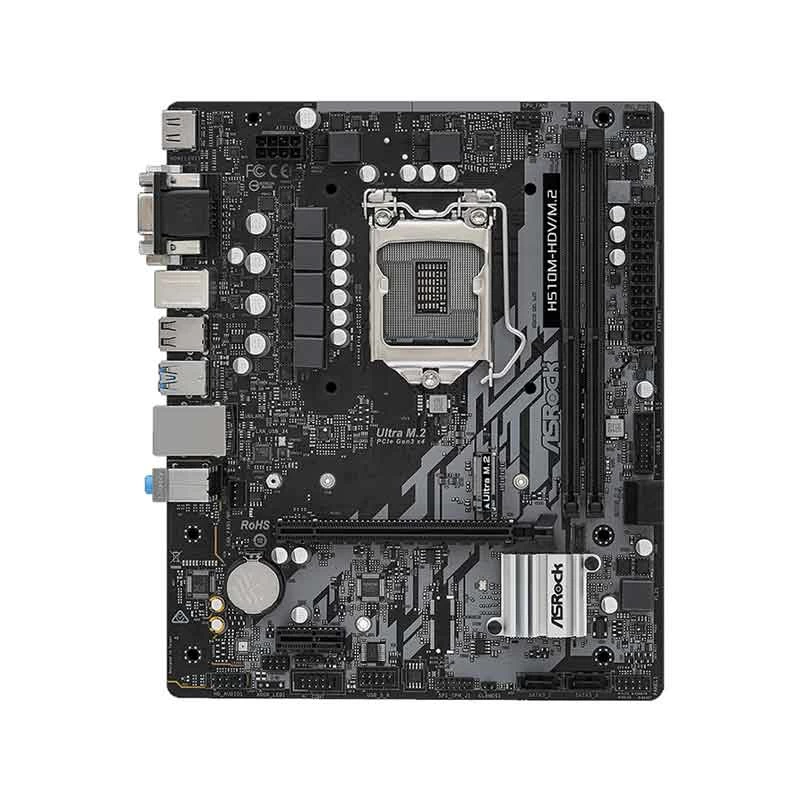

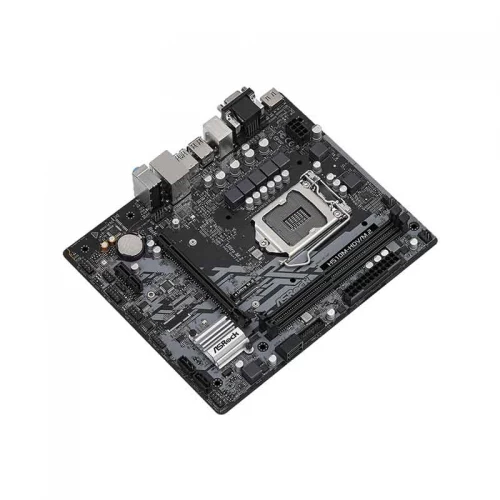

ASRock H510M HDV/M.2 10th/11th Gen Micro-ATX DDR4 Motherboard
Model: ASRock H510M HDV/M.2 Micro-ATX
Chipset – Intel H510
Memory Slot – 2
Supported CPU – Intel Core 10/11th Gen Processors
Generation – 10th/11th
Sockets Supported – LGA1200
Warranty: 3 year
Additional information
| Brand | ASRock |
|---|---|
| Model | ASRock H510M HDV/M.2 Micro-ATX |
| Chipset Brand | Intel |
| Chipset | Intel H510 |
| Sockets Supported | LGA1200 |
| Supported CPU | Intel Core 10/11th Gen Processors |
| Generation | 10th/11th |
| Memory Type | DDR4 |
| Memory MHz | 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Memory Channel | Dual |
| Memory Slot | 2 |
| Memory Max. | 64GB |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 1 |
| PCI Express Slot | 1 x PCI Express 4.0 x16 Slot (11th Gen Intel Core Processors), 1 x 1 x PCI Express 3.0 x16 Slot, 1 x PCI Express 3.0 x1 Slot (10th Intel Core Processors) |
| Audio Chipset. | Realtek ALC897 Audio Codec |
| Audio Channel | 7.1 |
| LAN Chipset | Giga PHY Intel I219V |
| LAN Speed (Mbps) | 10/ 100/ 1000 Mbps |
| WiFi | No |
| Bluetooth | No |
| USB Port | 4 x USB 2.0 Type-A, 2 x USB 3.2 Gen 1 Type-A |
| VGA Port | 1 |
| DVI Port | 1 |
| HDMI Port | 1 |
| DisplayPort (DP) | No |
| SATA Port | 4 x SATA |
| Thunderbolt | No |
| TPM Port | 1 |
| COM Port | 1 |
| CrossFire Support | No |
| Sli Support | No |
| RGB Support | No |
| Form Factor | Micro-ATX |
| BIOS Type | 128Mb |
| BIOS Model | AMI UEFI Legal BIOS |
| BIOS Version | ACPI 6.0, SMBIOS 2.7 |
| Supported Operating System | Windows 10/11 |
| Warranty | 3 year |

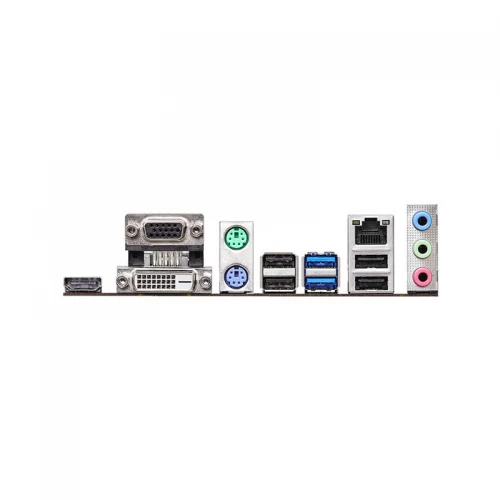

| Others | Connector: 1 x Chassis Intrusion and Speaker Header, 1 x CPU Fan Connector (4-pin), 1 x Chassis Fan Connector (4-pin), 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector. Rear Panel I/O: 1 x PS/2 Keyboard Port, 1 x PS/2 Mouse Port, 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), 3 x Audio Connectors |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
