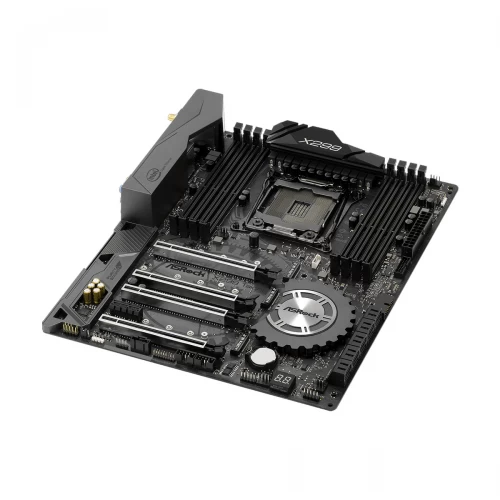

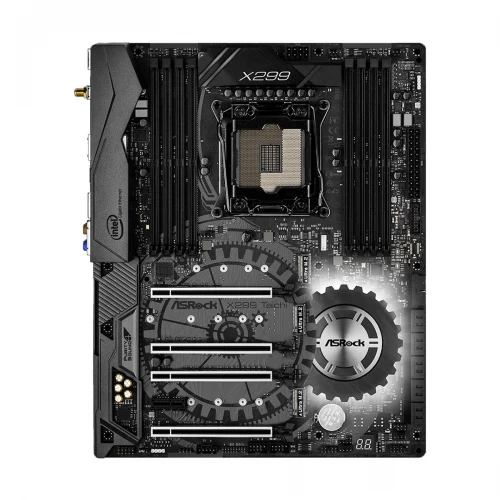

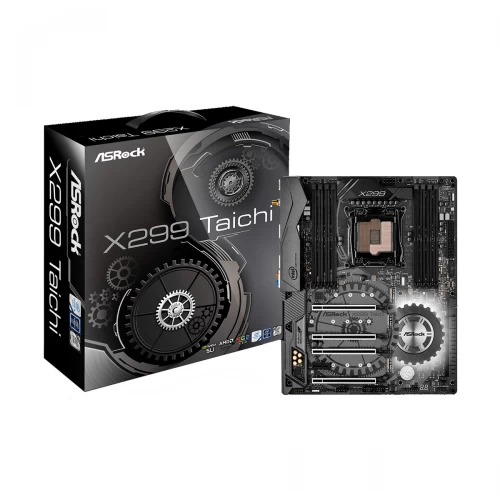

Asrock X299 Taichi DDR4 Wi-Fi Intel Extreme Series Motherboard
Model : Asrock X299 Taichi
Chipset : Intel X299
Memory Slot : 8
Supported CPU : Intel Core X series processors
Features : 13 Power Phase Design, Dr. MOS, Dual Intel Gigabit LAN, BIOS Flashback, XXL Aluminum Alloy Heatsink, Nichicon 12K Black Caps
Warranty : 3 year
Additional information
| Brand | Asrock |
|---|---|
| Model | Asrock X299 Taichi |
| Chipset | Intel X299 |
| Sockets Supported | LGA2066 |
| Supported CPU | Intel Core X series processors |
| Memory Type | DDR4 |
| Memory MHz | 4400(O.C.)/ 4333(O.C.)/4266(O.C.) / 4200(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2666 / 2400 / 2133MHz |
| Memory Channel | Quad |
| Memory Slot | 8 |
| Memory Max. | 256GB |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 1 |
| Multi-GPU Support | NVIDIA 3-Way SLI, AMD 3-Way CrossFireX |
| PCI Express Slot | 4 x PCI Express 3.0 x16 Slots, 1 x PCI Express 2.0 x1 Slot |
| Audio Chipset. | Realtek ALC1220 |
| Audio Channel | 2/4/5.1/7.1 |
| LAN Chipset | 1 x Giga PHY Intel I219V, 1 x GigaLAN Intel I211AT |
| LAN Speed (Mbps) | 10/100/1000Mbps |
| WiFi | Yes |
| WiFi Technology | Intel 802.11ac WiFi |
| Bluetooth | Bluetooth 4.2 |
| USB Port | 4 x USB 2.0, 6 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C |
| SATA Port | 8 x SATA |
| Thunderbolt | 1 |
| TPM Port | 1 |
| COM Port | No |
| CrossFire Support | Yes |
| Sli Support | Yes |
| Raid Support | 0,1.5,10 |
| RGB Support | Yes |
| RGB Connector | 2 x RGB LED Headers |
| Form Factor | ATX |
| BIOS Type | 2 x 128 Mb flash |
| BIOS Model | AMI UEFI Legal BIOS |
| BIOS Version | ACPI 6.1 Compliant |
| Supported Operating System | Windows 10 |
| Warranty | 3 year |
| Feature | 13 Power Phase Design, Dr. MOS, Dual Intel Gigabit LAN, BIOS Flashback, XXL Aluminum Alloy Heatsink, Nichicon 12K Black Caps, Matte Black PCB, High Density Glass Fabric PCB, ASRock Steel Slots, ASRock Live Update & APP Shop |
| Others | 1 x Virtual RAID On CPU Header, 1 x Power LED and Speaker Header, 1 x CPU Fan Connector (4-pin), 1 x CPU Optional/Water Pump Fan Connector (4-pin), 2 x Chassis Fan Connectors (4-pin), 1 x Chassis Optional/Water Pump Fan Connector (4-pin), 1 x 24 pin ATX Power Connector (Hi-Density Power Connector), 1 x 8 pin 12V Power Connector (Hi-Density Power Connector), 1 x Front Panel Audio Connector (15 Gold Audio Connector), 1 x Dr. Debug with LED |
