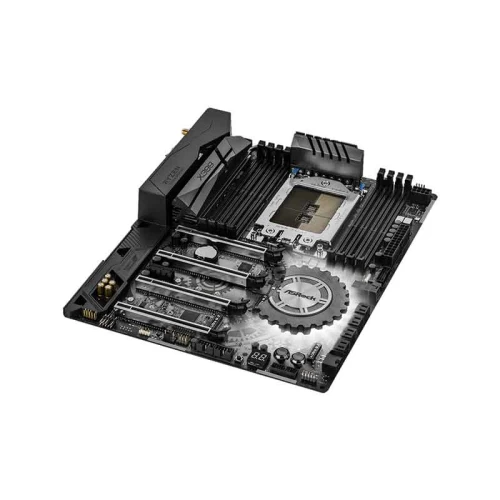

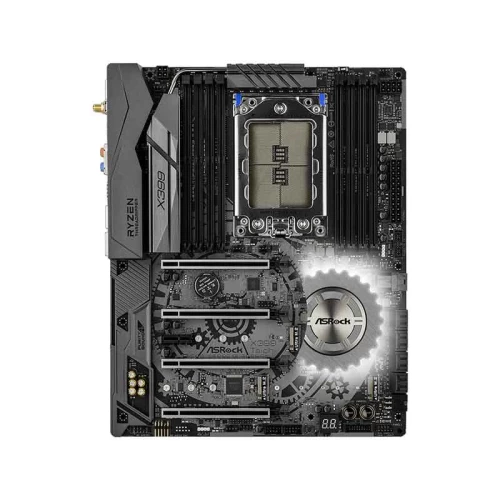

ASRock X399 Taichi (Wi-Fi) DDR4 AMD Motherboard
Model : ASRock X399 Taichi (Wi-Fi)
Chipset : AMD X399
Memory Slot : 8
Supported CPU : AMD TR4 Socket Ryzen Threadripper Series CPUs
Warranty : 1 year
Additional information
| Brand | ASRock |
|---|---|
| Model | ASRock X399 Taichi (Wi-Fi) |
| Chipset Brand | AMD |
| Chipset | AMD X399 |
| Sockets Supported | TR4 |
| Supported CPU | AMD TR4 Socket Ryzen Threadripper Series CPUs |
| Memory Type | DDR4 |
| Memory MHz | 3600+(OC) / 3200(OC) / 2933(OC) / 2667 / 2400 / 2133 MHz |
| Memory Slot | 8 |
| Memory Max. (Additional Info) | 128GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| PCI Express Slot | 4 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE4/PCIE5: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE4); triple at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE4); quad at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE4) / x8 (PCIE5), |
| Audio Chipset. | Realtek ALC1220 Audio Codec |
| Audio Channel | 7.1 |
| LAN Chipset | Intel I211AT |
| LAN Speed (Mbps) | 10/ 100/ 1000Mbps |
| WiFi | Yes |
| WiFi Technology | IEEE 802.11a/b/g/n/ac, Dual-Band (2.4/5 GHz) |
| Bluetooth | Bluetooth 4.2 |
| USB Port | 1 x USB 3.1 Gen 2 Type-A, 1 x USB 3.1 Gen 2 Type-C, 8 x USB 3.1 Gen 1 |
| SATA Port | 8 x SATA |
| CrossFire Support | Yes |
| Sli Support | Yes |
| RGB Support | Yes |
| RGB Connector | 2 x RGB LED Headers |
| Form Factor | ATX |
| BIOS Type | 128Mb AMI UEFI Legal BIOS |
| Supported Operating System | Windows 10 |
| Warranty | 1 year |
| Others | Connector: 1 x Power LED and Speaker Header, 1 x CPU Fan Connector (4-pin), 1 x CPU Optional/Water Pump Fan Connector (4-pin), 2 x Chassis Fan Connectors (4-pin) , 1 x Chassis Optional/Water Pump Fan Connector (4-pin), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x 4 pin 12V Power Connector, 1 x 6 pin 12V Power Connector, 1 x Clear CMOS Switch, 1 x Dr. Debug with LED, 1 x Power Switch with LED, 1 x Reset Switch with LED, 1 x CPU Xtreme OC Switch. Rear Panel I/O: 2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard Port, 1 x Optical SPDIF Out Port. Rear Panel I/O: 2 x RJ-45 LAN Ports, 1 x BIOS. HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks). 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) – 15 Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4) |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
