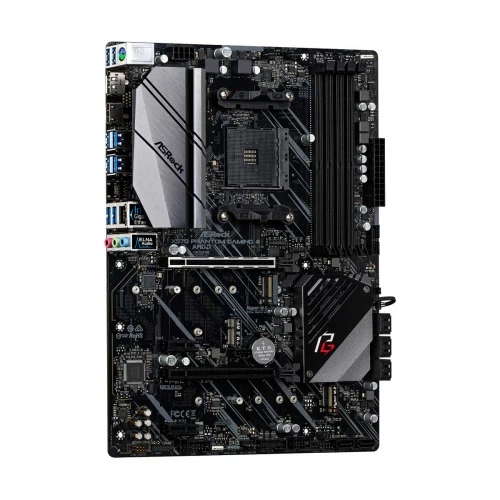

Asrock X570 Phantom Gaming 4 AMD AM4 Socket Motherboard
Model : Asrock X570 Phantom Gaming 4
Chipset : AMD X570
Memory Slot : 4
Supported CPU : Ryzen 2000, 3000, 4000 G-Series and 5000 Series Processors
Features : This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on.
Warranty : 3 year
Additional information
| Brand | Asrock |
|---|---|
| Model | Asrock X570 Phantom Gaming 4 |
| Chipset Brand | AMD |
| Chipset | AMD X570 |
| Sockets Supported | AM4 |
| Supported CPU | Ryzen 2000, 3000, 4000 G-Series and 5000 Series Processors |
| Memory Type | DDR4 |
| Memory MHz | AMD Ryzen series CPUs (Vermeer, Matisse & Renoir): 4666+(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133, Pinnacle Ridge & Picasso: 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| Graphics | Radeon Vega Graphics |
| PCI Express Slot | 1 x PCI Express 4.0 x16 Slot (x16 (PCIE1)), 1 x PCI Express 3.0 x16 Slot (x16 (PCIE1)), 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1)), 1 x PCI Express 4.0 x16 Slot (x4 (PCIE3)) |
| Audio Chipset. | Realtek ALC1200 Audio Codec |
| Audio Channel | 7.1 |
| LAN Chipset | Intel I211AT |
| LAN Speed (Mbps) | 10/100/1000 Mb/s |

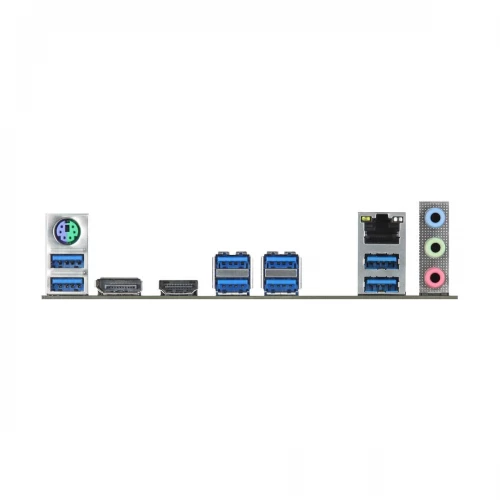

| USB Port | 1 x USB 2.0, 8 x USB 3.2 Gen 1, 2 x USB 3.2 Gen 2 Type-A |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 8 |
| Thunderbolt | 1 |
| TPM Port | Yes |
| COM Port | 1 |
| DirectX Support | 12 |
| CrossFire Support | Yes |
| Raid Support | 0, 1, 10 |
| RGB Support | Yes |
| RGB Sync | Polychrome SYNC |
| RGB Connector | 2 x RGB LED Headers |
| Form Factor | ATX |
| BIOS Type | 2 x 256 Mbit flash |
| BIOS Model | AMI UEFI Legal BIOS |
| BIOS Version | ACPI 5.1, SMBIOS 2.3 |
| Supported Operating System | Windows 10 |
| Warranty | 3 year |
| Feature | This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. |
| Others | 1 x Power LED and Speaker Header, 1 x Addressable LED Header, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin), 3 x Chassis/Water Pump Fan Connectors (4-pin), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector, 1 x AMD LED Fan USB Header, 1 x PS/2 Mouse/Keyboard Port, 1 x RJ-45 LAN Port, Certifications: FCC, CE, ErP/EuP, AMD Quad CrossFireX and CrossFireX |
