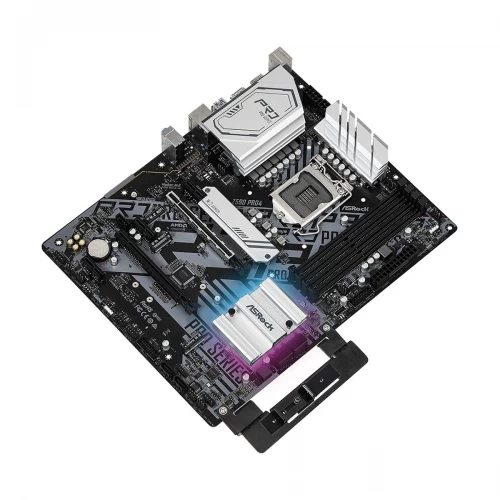

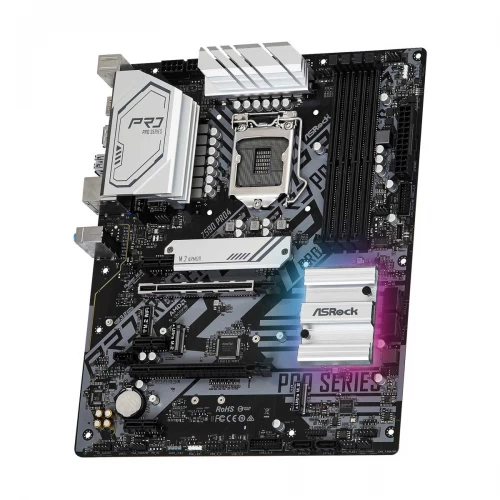

ASRock Z590 Pro4 ATX DDR4 Intel LGA1200 Socket Motherboard
Model : ASRock Z590 Pro4
Chipset : Intel Z590
Memory Slot : 4
Supported CPU : Core i9, i7, i5, i3, Pentium, Celeron processors
Generation : 10th/11th
Features : ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly.
Warranty : 3 year
Additional information
| Brand | ASRock |
|---|---|
| Model | ASRock Z590 Pro4 |
| Chipset Brand | Intel |
| Chipset | Intel Z590 |
| Sockets Supported | LGA1200 |
| Supported CPU | Core i9, i7, i5, i3, Pentium, Celeron processors |
| Generation | 10th/11th |
| Memory Type | DDR4 |
| Memory MHz | 11th Gen up to 4800+(OC), 10th Gen up to 4600+(OC) |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 3 |
| PCI Express Slot | 2 x PCI Express x16 Slots, 3 x PCI Express 3.0 x1 Slots |
| Audio Chipset. | Realtek ALC897 Audio Codec |
| Audio Channel | 7.1 |
| LAN Chipset | Dragon RTL8125BG |
| LAN Speed (Mbps) | 10/100/1000/2500 Mb/s |
| USB Port | 1 x USB 3.2 Gen 2×2 Type-C, 2 x USB 3.2 Gen 2, 6 x USB 3.2 Gen 1, 6 x USB 2.0 |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 6 |
| Thunderbolt | 1 |
| TPM Port | 1 |
| Raid Support | 0, 1, 5, 10 |
| RGB Support | Yes |
| RGB Sync | Polychrome SYNC |
| RGB Connector | 2 x RGB LED Headers |
| Form Factor | ATX |
| BIOS Type | 128MB Flash |
| BIOS Model | AMI UEFI Legal BIOS |
| BIOS Version | ACPI 6.0, SMBIOS 2.7 |
| Supported Operating System | Windows 10 |
| Warranty | 3 year |
| Feature | ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well. This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. |

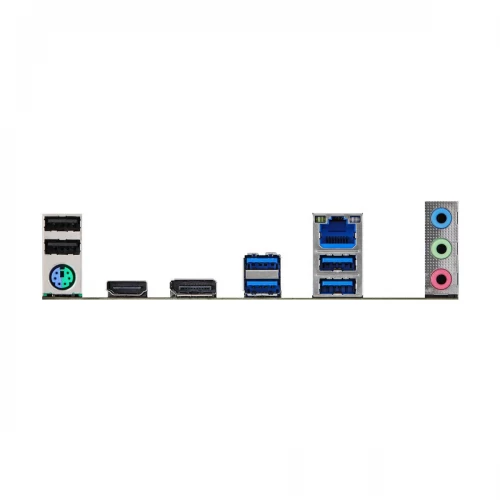

| Others | 2 x Addressable LED Headers, 1 x CPU Fan Connector, 1 x CPU/Water Pump Fan Connector, 4 x Chassis/Water Pump Fan Connectors, 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x 4 pin 12V Power Connector, 1 x Front Panel Audio Connector, 3 x Antenna Mounting Points, 1 x PS/2 Mouse/Keyboard Port, 1 x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone, Certifications: FCC, CE, ErP/EuP |
