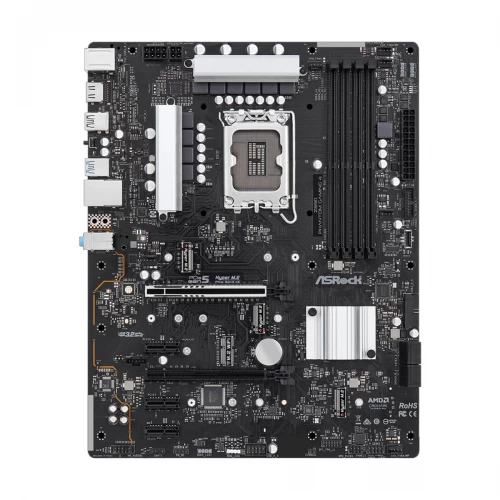

ASRock Z690 PHANTOM GAMING 4 DDR4 12th/13th Gen Intel Gaming Motherborad
Model: ASRock Z690 PHANTOM GAMING 4
Chipset – Intel Z690
Memory Slot – 4
Supported CPU – Intel Core Processors
Generation – 12th/13th
Sockets Supported – LGA1700
Warranty: 3 year
Additional information
| Brand | ASRock |
|---|---|
| Model | ASRock Z690 PHANTOM GAMING 4 |
| Chipset Brand | Intel |
| Chipset | Intel Z690 |
| Sockets Supported | LGA1700 |
| Supported CPU | Intel Core Processors |
| Generation | 12th/13th |
| Memory Type | DDR4 |
| Memory MHz | 5000+(OC) |
| Memory Slot | 4 |
| Memory Slot (Additional Info) | 4 x DDR4 DIMM |
| Memory Max. | 128GB |
| Optane Memory Support | Yes |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 3 |
| PCI Express Slot | 2 x PCIe x16 Slots, 3 x PCIe Gen3x1 Slots |
| Audio Chipset. | Realtek ALC897 Audio Codec, Nahimic Audio |
| Audio Channel | 7.1 |
| LAN Speed (Mbps) | 10/100/1000 Mb/s |
| WiFi | No |
| USB Port | 1 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen2 Type-C, 4 x USB 3.2 Gen1, 2 x USB 2.0 |
| HDMI Port | 1 |
| SATA Port | 4 x SATA |
| TPM Port | Yes |
| CrossFire Support | Yes |
| Sli Support | No |
| Raid Support | 0, 1, 5, 10 |
| RGB Support | Yes |
| RGB Connector | 1 x RGB LED Header |
| Form Factor | ATX |
| BIOS Type | 1 x 128 Mb flash |
| BIOS Model | AMI UEFI Legal BIOS |
| Warranty | 3 year |
| Feature | Supports 12th/13th Gen Intel Core Processors (LGA1700). 9 Phase Dr.MOS Power Design. Supports DDR4 5000MHz (OC). Graphics Output Options: HDMI. Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio |

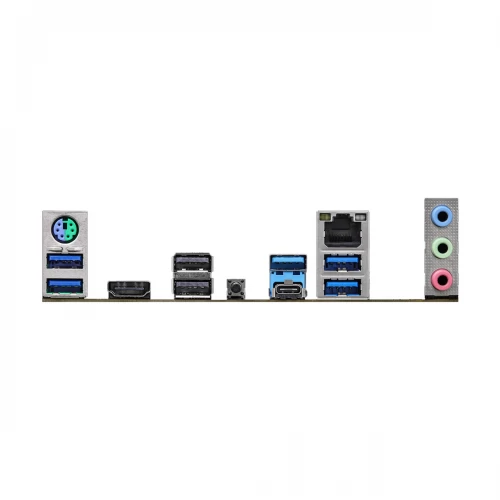

| Others | Rear Panel I/O: 3 x Antenna Mounting Points, 1 x PS/2 Mouse/Keyboard Port, 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), 1 x BIOS Flashback Button, 1 x HD Audio Jacks: Line in / Front Speaker / Microphone |
