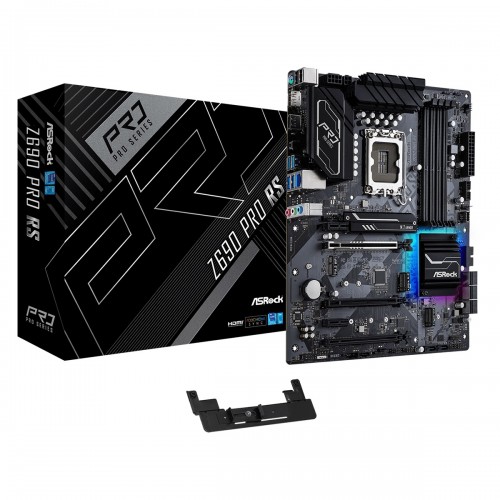

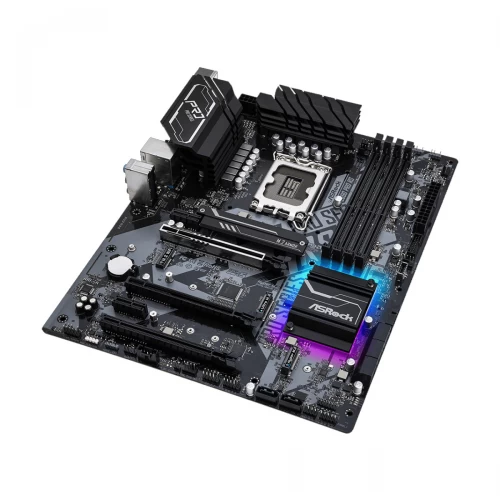

ASRock Z690 PRO RS DDR4 12th/13th Gen Intel LGA1700 Socket Motherboard
Model: ASRock Z690 PRO RS
Chipset – Intel Z690
Memory Slot – 4
Supported CPU -Intel Core Processors
Generation – 12th/13th
Sockets Supported – LGA1700
Warranty: 3 year
Additional information
| Brand | ASRock |
|---|---|
| Model | ASRock Z690 PRO RS |
| Chipset Brand | Intel |
| Chipset | Intel Z690 |
| Sockets Supported | LGA1700 |
| Supported CPU | Intel Core Processors |
| Generation | 12th/13th |
| Memory Type | DDR4 |
| Memory MHz | 5000+(OC) |
| Memory Slot | 4 |
| Memory Slot (Additional Info) | 4 x DDR4 DIMM Slots |
| Memory Max. | 128GB |
| Optane Memory Support | Yes |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 1 |
| PCI Express Slot | 3 x PCIe x16 Slots, 2 x PCIe Gen3x1 Slots |
| Audio Chipset. | Realtek ALC897 Codec, Nahimic Audio |
| Audio Channel | 7.1 |
| LAN Chipset | Dragon RTL8125BG, 2.5 Gigabit LAN |
| LAN Speed (Mbps) | 10/100/1000/2500 Mb/s |
| WiFi | No |
| USB Port | 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 2 x USB 2.0 |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 8 x SATA |
| TPM Port | Yes |
| CrossFire Support | Yes |
| Sli Support | No |
| Raid Support | 0, 1, 5, 10 |
| RGB Support | Yes |
| RGB Connector | 1 x RGB LED Header |
| Form Factor | ATX |
| BIOS Type | 1 x 128 Mb flash |
| BIOS Model | AMI UEFI Legal BIOS |
| Supported Operating System | Windows 10/ 11 |
| Warranty | 3 year |
| Feature | Supports 12th/13th Gen Intel Core Processors (LGA1700). 13 Phase Dr.MOS Power Design. Supports DDR4 5000MHz (OC). 1 M.2 Key-E for WiFi. Graphics Output Options: HDMI, DisplayPort. Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio. 8 SATA 3. |

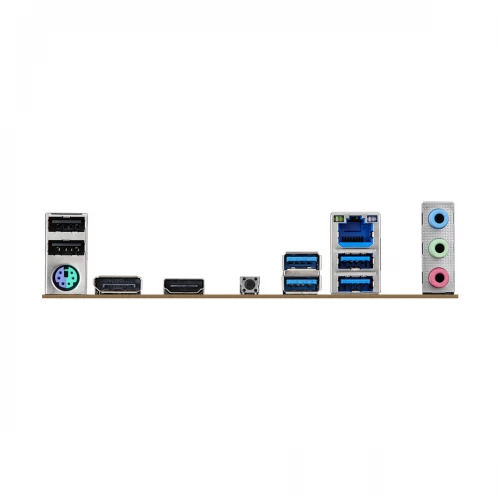

| Others | Rear Panel I/O: – 3 x Antenna Mounting Points, 1 x PS/2 Mouse/Keyboard Port, – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), – 1 x BIOS Flashback Button, 1 x HD Audio Jacks: Line in / Front Speaker / Microphone. |
