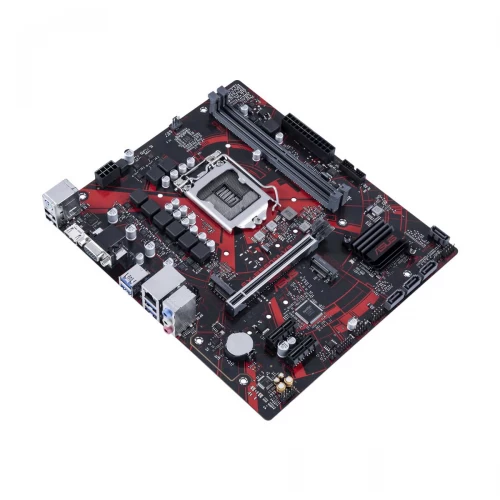

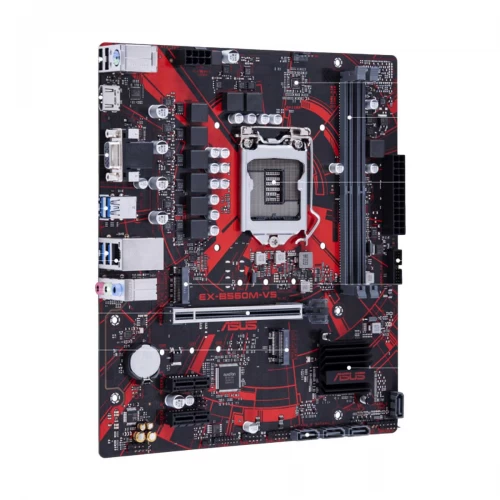

Asus EX-B560M-V5 DDR4 10th/11th Gen Intel Motherboard
Model : Asus EX-B560M-V5
Chipset : Intel B560
Memory Slot : 2
Supported CPU : 11th Gen: Intel Core Processors & 10th Gen: Intel Core, Pentium Gold and Celeron Processors
Generation : 10th/11th
Features : ASUS Expedition motherboards are made for non-stop action
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus EX-B560M-V5 |
| Chipset Brand | Intel |
| Chipset | Intel B560 |
| Sockets Supported | LGA1200 |
| Supported CPU | 11th Gen: Intel Core Processors & 10th Gen: Intel Core, Pentium Gold and Celeron Processors |
| Generation | 10th/11th |
| Memory Type | DDR4 |
| Memory MHz | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz |
| Memory Channel | Dual |
| Memory Slot | 2 |
| Memory Max. | 64GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| PCI Express Slot | 1 x PCIe 4.0/3.0 x16, 2 x PCIe 3.0 x1 |
| Audio Chipset. | Realtek ALC897 |
| Audio Channel | 7.1 |
| LAN Chipset | Realtek 1Gb Ethernet |
| LAN Speed (Mbps) | 10/100/1000 Mb/s |
| WiFi | No |
| USB Port | 6 x USB 3.2 Gen 1 Type-A, 6 x USB 2.0 Type-A |
| VGA Port | 1 |
| HDMI Port | 1 |
| SATA Port | 4 |
| TPM Port | 1 |
| CrossFire Support | No |
| Sli Support | No |
| RGB Support | No |
| Form Factor | Micro-ATX |
| BIOS Type | 128 Mb Flash |
| BIOS Model | UEFI AMI BIOS |
| Supported Operating System | Windows 10 |
| Warranty | 3 Years Replacement Warranty |
| Feature | ASUS Expedition motherboards are made for non-stop action, engineered with non-stop durability to prevent damage from moisture, corrosion and overvoltages – for immense longevity. ASUS Expedition motherboards offer an exclusive package of unbeatable hardware and features to ensure non-stop durability, including a luminous anti-moisture coating, SafeSlot Core+, LANGuard, USBGuard protection for 120%-higher overvoltage toleration, and exclusive 5X Protection III for absolute reliability. |
| Others | 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port, 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x Clear CMOS header, 1 x Front Panel Audio header, 1 x SPI TPM header, 1 x Speaker header, 1 x 10-1 pin System Panel header |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
