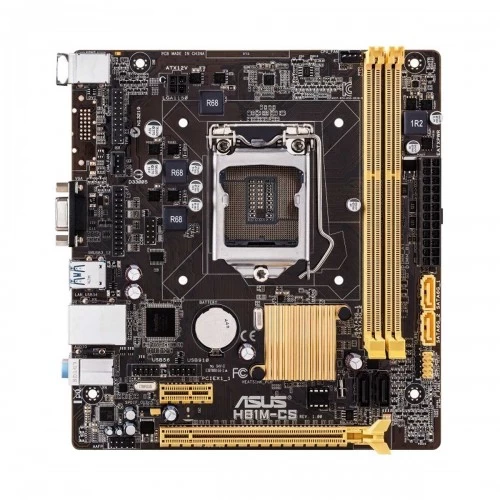

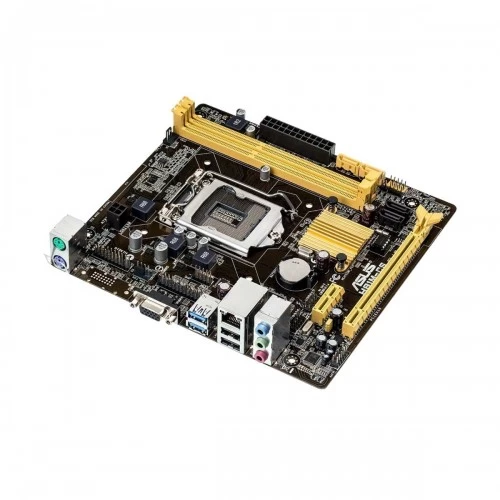

Asus H81M-CS DDR3 4th Gen Intel LGA1150 Socket Motherboard
Model : Asus H81M-CS
Chipset : Intel H81
Memory Slot : 2
Supported CPU : Intel Core i7 / i5 / i3 / Pentium / Celeron Processors
Generation : 4th
Features : ASUS EPU, ASUS Quiet Thermal Solution, ASUS EZ DIY, ASUS Q-Design, high stability and durability
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus H81M-CS |
| Chipset Brand | Intel |
| Chipset | Intel H81 |
| Sockets Supported | LGA1150 |
| Supported CPU | Intel Core i7 / i5 / i3 / Pentium / Celeron Processors |
| Generation | 4th |
| Memory Type | DDR3 |
| Memory MHz | 1600/ 1333/ 1066MHz |
| Memory Channel | Dual |
| Memory Slot | 2 |
| Memory Max. | 16GB |
| Storage Interface | 6Gb/s, 3Gb/s |
| Graphics | Integrated Graphics |
| PCI Express Slot | 1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1 |
| Audio Chipset. | Realtek ALC887 |
| Audio Channel | 8 |
| LAN Chipset | Realtek 8111GR |
| LAN Speed (Mbps) | 10/100/1000Mbps |
| USB Port | 2 x USB3.1 Gen 1, 6 x USB2.0 |
| VGA Port | 1 |
| SATA Port | 4 x SATA |
| Form Factor | U-ATX |
| BIOS Type | 1 x 64 Mbit Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| BIOS Version | PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a |
| Supported Operating System | Windows 7 / 8 / 8.1 |
| Warranty | 3 Years Replacement Warranty |
| Feature | ASUS EPU, ASUS Quiet Thermal Solution, ASUS EZ DIY, ASUS Q-Design, high stability and durability, with easy-to-use UEFI BIOS and ASUS AI Suite 3 tuning utility |
| Others | 1 x TPM header, 1 x LPT header, 1 x COM port(s) connector(s), 1 x CPU Fan connector(s), 1 x Front panel connector(s), 1 x Internal speaker connector(s), 1 x Chassis Intrusion connector(s), 3 x Audio jack(s) |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
