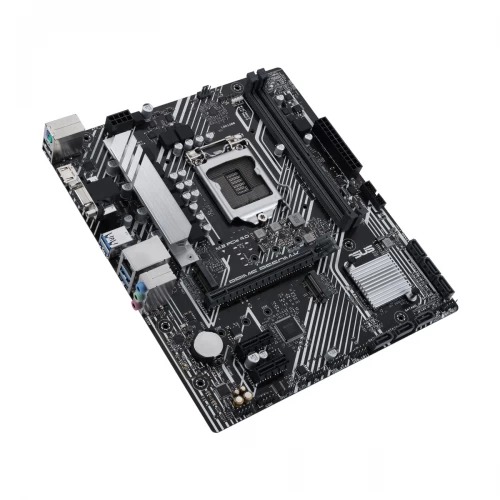

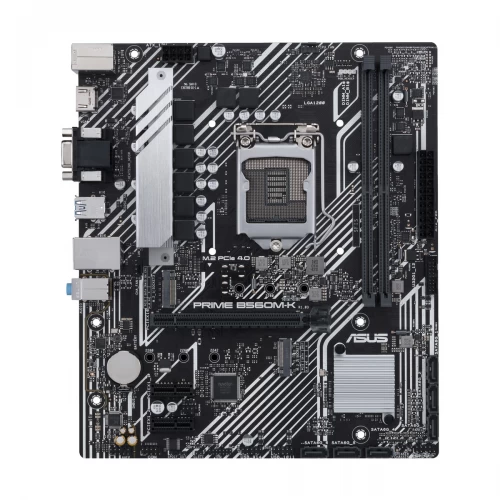

Asus PRIME B560M-K DDR4 10th/11th Gen Intel Motherboard
Model : Asus PRIME B560M-K
Chipset : Intel B560
Memory Slot : 2
Supported CPU : 11th Gen: Intel Core Processors & 10th Gen: Intel Core, Pentium Gold and Celeron Processors
Generation : 10th/11th
Features : Intel B560 (LGA 1200) mATX motherboard with PCIe 4.0, two M.2 slots, 8 power stages
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus PRIME B560M-K |
| Chipset Brand | Intel |
| Chipset | Intel B560 |
| Sockets Supported | LGA1200 |
| Supported CPU | 11th Gen: Intel Core Processors & 10th Gen: Intel Core, Pentium Gold and Celeron Processors |
| Generation | 10th/11th |
| Memory Type | DDR4 |
| Memory MHz | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz |
| Memory Channel | Dual |
| Memory Slot | 2 |
| Memory Max. | 64GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| PCI Express Slot | 1 x PCIe 4.0/3.0 x16, 2 x PCIe 3.0 x1 |
| Audio Chipset. | Realtek ALC897 |
| Audio Channel | 7.1 |
| LAN Chipset | Intel I219-V |
| LAN Speed (Mbps) | 10/100/1000 Mb/s |
| WiFi | No |
| USB Port | 5 x USB 3.2 Gen 1, 4 x USB 2.0 |
| VGA Port | 1 |
| DVI Port | 1 |
| SATA Port | 6 |
| TPM Port | 1 |
| COM Port | 1 |
| CrossFire Support | No |
| Sli Support | No |
| RGB Support | Yes |
| RGB Connector | 1 x RGB header |
| Form Factor | Micro-ATX |
| BIOS Type | 128 Mb Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| Supported Operating System | Windows 10 |
| Warranty | 3 Years Replacement Warranty |
| Feature | Intel B560 (LGA 1200) mATX motherboard with PCIe 4.0, two M.2 slots, 8 power stages, Intel 1 Gb Ethernet, HDMI, D-Sub, rear USB 3.2 Gen 1, TPM header, RGB header Intel LGA 1200 socket: Ready for 11th Gen Intel Core processors, Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery, Comprehensive cooling: VRM heatsink, PCH heatsink, Ultrafast connectivity: PCIe 4.0, Intel 1 Gb Ethernet, rear USB 3.2 Gen 1 support |
| Others | 1 x 24-pin Main Power connector, 1 x 8-pin+12V Power connector, 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header, 3 x Audio jacks, 1 x Clear CMOS header, 1 x Front Panel Audio header, 1 x S/PDIF Out header, 1 x Speaker header, 1 x 10-1 pin System Panel header, 1 x PS/2 Keyboard/Mouse combo port |
