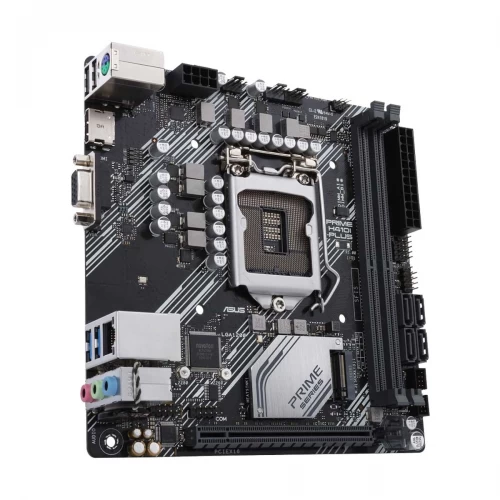

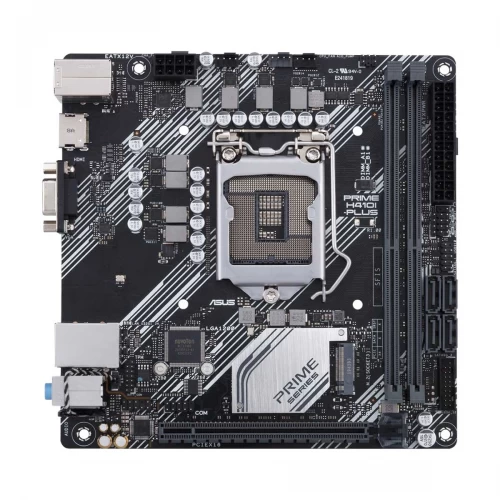

Asus PRIME H410I-PLUS DDR4 Intel Motherboard (Bundle with PC)
Model : Asus PRIME H410I-PLUS
Chipset : Intel H410
Memory Slot : 2
Supported CPU : Intel Core and Pentium Gold / Celeron processors
Generation : 10th
Features : Enhanced power solution, 4+1+1 DrMOS power stages, 8-layer PCB, for stable power delivery
Warranty : 3 year
Additional information
| Brand | Asus |
|---|---|
| Model | Asus PRIME H410I-PLUS |
| Chipset | Intel H410 |
| Sockets Supported | LGA1200 |
| Supported CPU | Intel Core and Pentium Gold / Celeron processors |
| Generation | 10th |
| Memory Type | DDR4 |
| Memory MHz | 2666/ 2400/ 2133MHz |
| Memory Slot | 2 |
| Memory Max. | 64GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 1 |
| Graphics Chipset | Integrated Graphics |
| PCI Express Slot | PCI Express Slot |
| Audio Chipset. | Realtek ALC887 |
| Audio Channel | 7.1 |
| LAN Chipset | Realtek RTL8111H |
| LAN Speed (Mbps) | 10/100/1000 Mbps |
| USB Port | 4 x USB3.2 Gen 1, 4 x USB2.0 |
| VGA Port | 1 |
| HDMI Port | 1 |
| SATA Port | 4 x SATA |
| TPM Port | 1 |
| COM Port | 1 |
| Form Factor | Mini-ITX |
| BIOS Type | 1 x 128 Mbit Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| Supported Operating System | Windows 10 |
| Warranty | 3 year |
| Feature | Enhanced power solution, 4+1+1 DrMOS power stages, 8-layer PCB, for stable power delivery, ASUS OptiMem II, Careful routing of traces and vias to preserve signal integrity for improved memory stability, Fan Xpert 4, Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming, 5X Protection III, Multiple hardware safeguards for all-round protection, Mini-ITX motherboard, M.2, DDR4 2666MHz, HDMI, D-SUB, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, Audio Shielding, Premium Japanese Audio Capacitors, Dedicated Audio PCB Layers, Supports Intel Extreme Memory Profile (XMP) |
| Others | 1 x CPU Fan connector(s) (1 x 4 -pin), 1 x AAFP connector, 1 x SPI TPM header, 1 x System panel(s), 1 x Clear CMOS jumper(s), 1 x COM port header, 1 x Speaker connector, 3 x Audio jack(s), Manageability: WOL by PME, PXE |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
