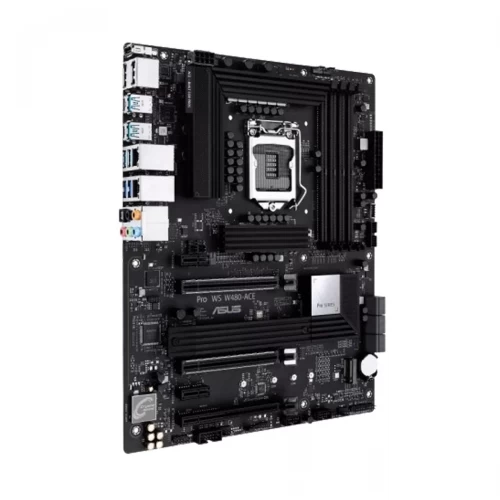

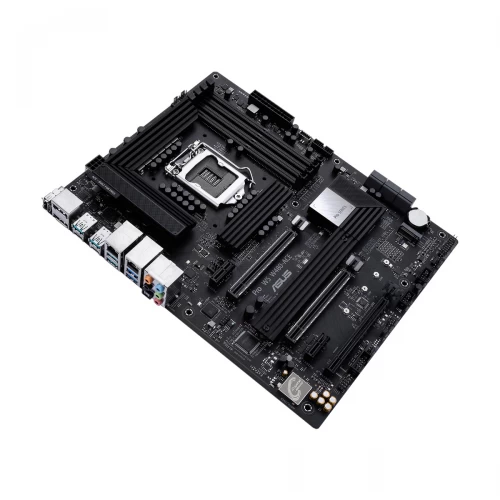

Asus Pro WS W480-ACE DDR4 Intel Motherboard
Model : Asus Pro WS W480-ACE
Chipset : Intel W480
Memory Slot : 4
Supported CPU : Intel 10th Gen Intel Xeon Core, Pentium Gold and Celeron Processors, Supports Intel 14 nm CPU
Generation : 10th
Features : ASUS Exclusive Software, Performance And Power Saving Utility, IT Management software supported
Warranty : 3 year
Additional information
| Brand | Asus |
|---|---|
| Model | Asus Pro WS W480-ACE |
| Chipset Brand | Intel |
| Chipset | Intel W480 |
| Sockets Supported | LGA1200 |
| Supported CPU | Intel 10th Gen Intel Xeon Core, Pentium Gold and Celeron Processors, Supports Intel 14 nm CPU |
| Generation | 10th |
| Memory Type | DDR4 |
| Memory MHz | 4800(O.C.)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHz Non-ECC, Un-buffered Memory |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Optane Memory Support | Yes |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| Multi-GPU Support | Yes |
| PCI Express Slot | 2 x PCIe 3.0 x16 (x16 or dual x8), 1 x PCIe 3.0 x16 (x4 mode), 2 x PCIe 3.0 x1 |
| Audio Chipset. | Realtek ALC S1220A HD Audio CODEC |
| Audio Channel | 8 |
| LAN Chipset | Intel I225-LM 2.5Gb Ethernet & Realtek RTL8117 |
| LAN Speed (Mbps) | 10/100/1000/2500Mbps |
| WiFi | No |
| USB Port | 2 x USB 3.2 Gen 2 Type-C, 4 x USB 3.2 Gen 2 port Type-A, 2 x USB 3.2 Gen 1 ports Type-A |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 6 |
| Thunderbolt | 2 |
| COM Port | Yes |
| CrossFire Support | Yes |
| Sli Support | No |
| Raid Support | 0, 1, 5, 10 |
| RGB Support | No |
| Form Factor | ATX |
| BIOS Type | 128Mb Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| Supported Operating System | Windows 10 |
| Warranty | 3 year |
| Feature | ASUS Exclusive Software, Performance And Power Saving Utility, IT Management software supported, ASUS Turbo LAN, ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Ultrafast USB Connectivity, Robust Power Design, AI Cooling, CPU Temperature Detection, Automated Optimization |
| Others | Manageability: WOL by PME, PXE, Internal I/O Ports: (1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 3 x Chassis Fan connector(s), 1 x AIO PUMP connector, 1 x 24-pin EATX Power connector(s), 1 x 8-pin EATX 12V Power connectors, 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function, 1 x Thermal sensor connector(s), 1 x Clear CMOS jumper(s), 1 x COM port header) |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
