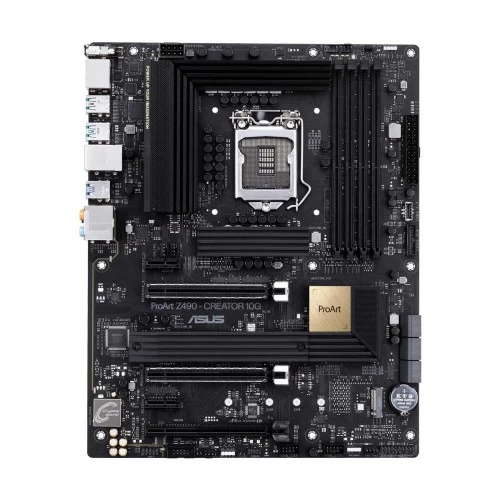

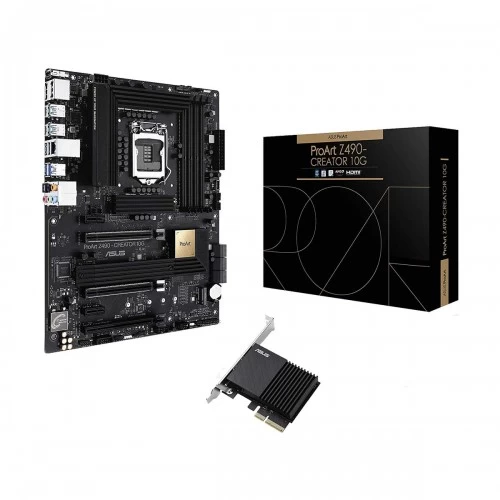

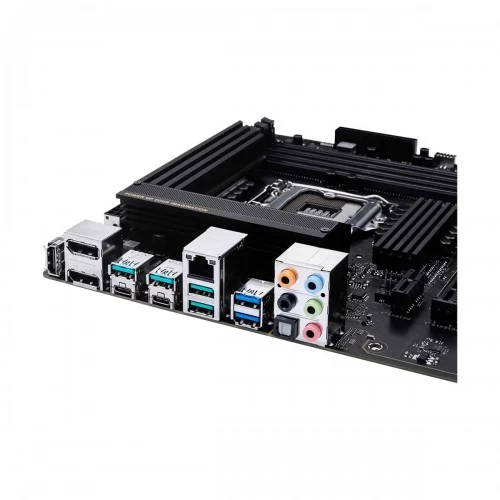

Asus ProArt Z490-CREATOR 10G DDR4 Intel LGA1200 Socket Motherboard
Model : Asus PROART Z490-CREATOR 10G
Chipset : Intel Z490
Memory Slot : 4
Supported CPU : 10th Generation Intel Core i9 / i7 / i5 / i3 / Pentium Gold / Celeron Processors
Generation : 10th
Features : Intel Z490 LGA 1200 ATX motherboard for content creators features a 10G LAN card, onboard 2.5G Intel LAN, dual Thunderbolt 3 Type-C ports, dual M.2, USB 3.2 Gen 2 ports, SATA 6 Gbps
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus PROART Z490-CREATOR 10G |
| Chipset Brand | Intel |
| Chipset | Intel Z490 |
| Sockets Supported | LGA1200 |
| Supported CPU | 10th Generation Intel Core i9 / i7 / i5 / i3 / Pentium Gold / Celeron Processors |
| Generation | 10th |
| Memory Type | DDR4 |
| Memory MHz | 4800(O.C.)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Optane Memory Support | Yes |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| Graphics | Integrated Graphics |
| Multi-GPU Support | 3-Way AMD CrossFireX Technology |
| PCI Express Slot | 3 PCIe 3.0 x16, 2 PCIe 3.0 x1 |
| Audio Chipset. | Realtek ALC S1220A |
| Audio Channel | 8 |
| LAN Chipset | Intel I225-V |
| LAN Speed (Mbps) | 2.5Gbps |
| USB Port | 2 x Thunderbolt 3 TypeC, 4 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 |
| HDMI Port | 1 |
| DisplayPort (DP) | 2 |
| SATA Port | 6 x SATA |
| Thunderbolt | 2 |
| COM Port | Yes |
| CrossFire Support | Yes |
| Raid Support | 0, 1, 5, 10 |
| RGB Support | Yes |
| RGB Sync | Aura Sync |
| RGB Connector | 2 x Aura RGB Strip Headers |
| Form Factor | ATX |
| BIOS Type | 128 Mb Flash |
| BIOS Model | AMI UEFI BIOS |
| Supported Operating System | Windows 10 |
| Warranty | 3 Years Replacement Warranty |
| Feature | Intel Z490 LGA 1200 ATX motherboard for content creators features a 10G LAN card, onboard 2.5G Intel LAN, dual Thunderbolt 3 Type-C ports, dual M.2, USB 3.2 Gen 2 ports, SATA 6 Gbps, ASUS TUF PROTECTION – ASUS DIGI+ VRM – ASUS Enhanced DRAM Overcurrent Protection – ASUS ESD Guards – ASUS LANGuard – ASUS Overvoltage Protection – ASUS SafeSlot Core+ – ASUS Stainless-Steel Back I/O, ASUS Q-Design: – ASUS Q-DIMM – ASUS Q-Slot – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), ASUS Thermal Solution: – Aluminum heatsink design, ASUS EZ DIY – Box Headers, AURA Sync – Standard RGB headers |
| Others | 2 x Thunderbolt 3 ports TypeC, 2 x DisplayPort IN ports for Thunderbolt 3, 1 x PS/2 keyboard/mouse combo port(s), 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 6 x USB 3.2 Gen 1 Type-A, 6 x Audio jack(s), 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 2 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 2 x Aura RGB Strip Headers, 1 x 24-pin EATX Power connector(s), 1 x 8-pin EATX 12V Power connectors, 1 x Front panel audio connector(s) (AAFP), 1 x Clear CMOS jumper(s), 1 x System panel connector, 1 x COM port header |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
