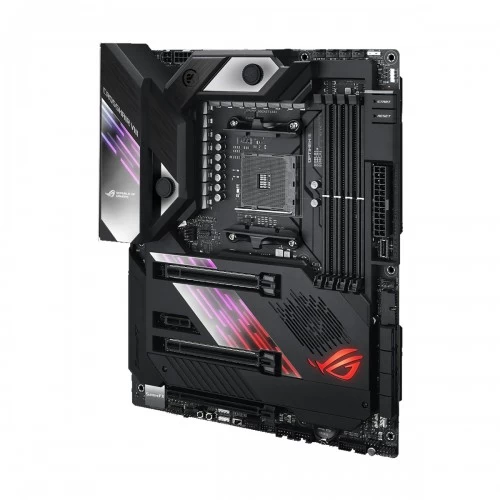

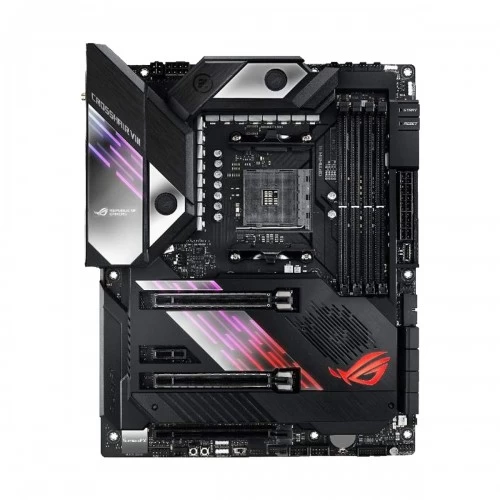

Asus ROG Crosshair VIII Formula X570 (Wi-Fi 6) DDR4 AMD Gaming Motherboard
Model : Asus ROG Crosshair VIII Formula X570
Chipset : AMD X570
Memory Slot : 4
Supported CPU : AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors
Features : ROG RGB Armor, ROG Aura, Extreme Engine Digi+, ROG Extreme OC kit, UEFI BIOS features, USB BIOS FlashBack, Crosschill EK III, ROG Patented Pre-mounted I/O Shield
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus ROG Crosshair VIII Formula X570 |
| Chipset | AMD X570 |
| Sockets Supported | AM4 |
| Supported CPU | AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors |
| Memory Type | DDR4 |
| Memory MHz | 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| Multi-GPU Support | NVIDIA 2-Way SLI, AMD 2-Way CrossFireX, AMD 3-Way CrossFireX |
| PCI Express Slot | 2 x PCIe 4.0 x16 (x16 or dual x8) (3rd Gen) / 2 x PCIe 3.0 x16 (x16 or dual x8) (2nd Gen) / 1 x PCIe 3.0 x16 (x8 mode) (2nd and 1st Gen) / 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1 (AMD X570) |
| Audio Chipset. | ROG SupremeFX |
| Audio Channel | 8 |
| LAN Chipset | Aquantia AQC111C & Intel I211-AT |
| LAN Speed (Mbps) | 100/1000/2500/5000Mbps & 10/100/1000Mbps |
| WiFi | Yes |
| WiFi Technology | Intel Wi-Fi 6 AX200, Supports channel bandwidth: HT20/HT40/HT80/HT160, Up to 2.4Gbps transfer speed |
| Bluetooth | Bluetooth 5.0 |

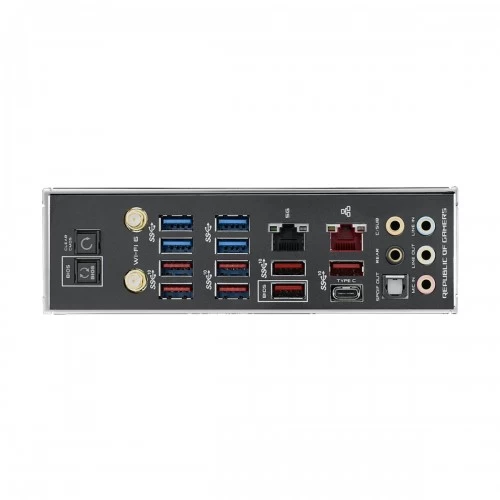

| USB Port | 8 x USB3.2 Gen 2 (7 x Type-A + 1 x Type-C), 4 x USB3.2 Gen 1 Type-A |
| SATA Port | 8 x SATA |
| CrossFire Support | Yes |
| Sli Support | Yes |
| Raid Support | 0,1,10 |
| RGB Support | Yes |
| RGB Sync | Aura Sync |
| RGB Connector | 2 x Aura RGB Strip Header |
| Form Factor | ATX |
| BIOS Type | 1 x 256 Mbit Flash ROM |
| BIOS Model | AMI UEFI BIOS |
| BIOS Version | PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
| Supported Operating System | Windows 10 |
| Warranty | 3 Years Replacement Warranty |
| Feature | ROG RGB Armor, ROG Aura, Extreme Engine Digi+, ROG Extreme OC kit, UEFI BIOS features, USB BIOS FlashBack, Crosschill EK III, ROG Patented Pre-mounted I/O Shield, ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5, Gamers Guardian, ASUS SafeSlot, LiveDash OLED, AURA, ASUS Q-Design, ATX gaming motherboard with PCIe 4.0, 16 power stages , OptiMem III, on-board Wi-Fi 6 (802.11ax), 5 Gbps LAN, USB 3.2, SATA, M.2, ASUS NODE and Aura Sync RGB lighting, Comprehensive thermal design, Integrated Crosschill EK III, active chipset heatsink, M.2 aluminum heatsink, and ROG Cooling Zone, Robust power delivery, Designed power solution with 14+2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors, High-performance networking, On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 5G and Gigabit Ethernet courtesy of Aquantia and Intel, both with ASUS LANGuard protection and support for GameFirst V software, 5-Way Optimization, Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for rig |
| Others | 2 x M.2 Socket 3, 1 x PCH_FAN, 2 x Aura RGB Strip Header(s), 2 x Addressable Gen 2 header(s), 1 x CPU Fan connector(s), 3 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 1 x H_AMP fan connector, 1 x W_PUMP+ connector, 1 x Slow Mode switch(es), 1 x LN2 Mode header(s), 1 x Power-on button(s), 1 x Node Connector(s), 1 x System panel connector, 1 x Thermal sensor connector, 1 x Speaker connector, 1 x Clear CMOS button(s), 1 x ASUS Wi-Fi Module, 1 x USB BIOS FlashBack Button(s), 1 x Gold-plated audio jacks, Wireless Data Network: Intel Wi-Fi 6 AX200, Supports channel bandwidth: HT20/HT40/HT80/HT160, 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz, Up to 2.4Gbps transfer speed |
