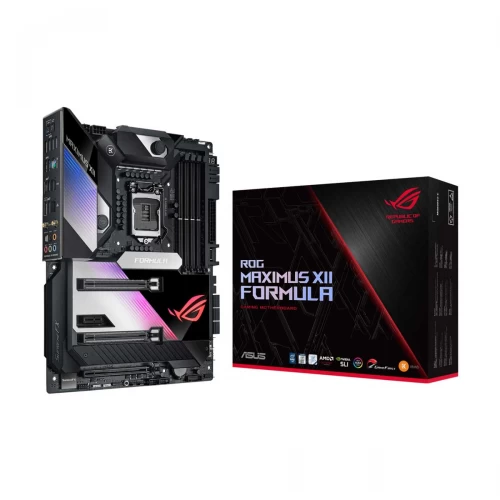

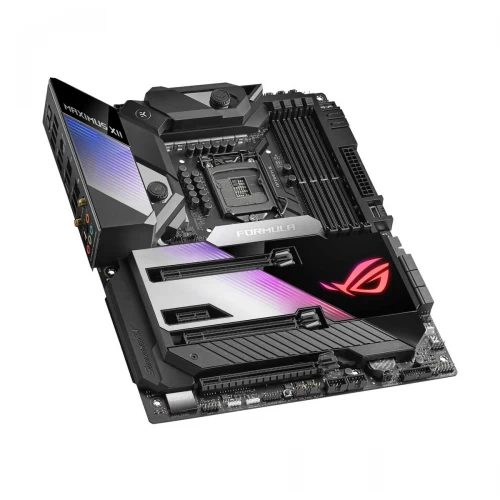

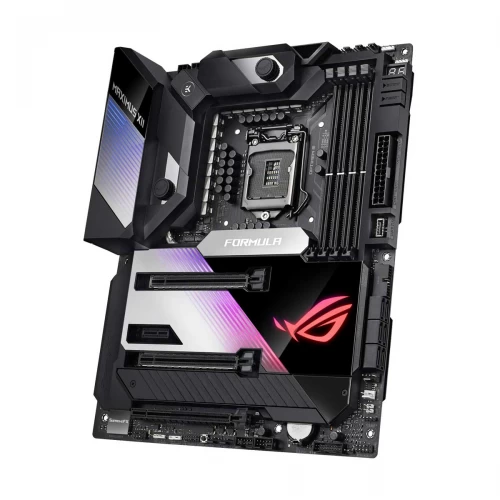

Asus ROG MAXIMUS XII FORMULA Wi-Fi 6 DDR4 Gaming Motherboard
Model : Asus ROG MAXIMUS XII FORMULA
Chipset : Intel Z490
Memory Slot : 4
Supported CPU : 10th Generation Intel Core i9 / i7 / i5 / i3 / Pentium Gold / Celeron Processors
Generation : 10th
Features : LGA 1200 socket for 10th-gen Intel Core desktop processors, AI Feature, AI Overclocking, AI Cooling and AI Networking (GameFirst VI), Robust power delivery, Optimized power solution with 16 power stages
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus ROG MAXIMUS XII FORMULA |
| Chipset Brand | Intel |
| Chipset | Intel Z490 |
| Sockets Supported | LGA1200 |
| Supported CPU | 10th Generation Intel Core i9 / i7 / i5 / i3 / Pentium Gold / Celeron Processors |
| Generation | 10th |
| Memory Type | DDR4 |
| Memory MHz | 4800(O.C.)/ 4700(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Optane Memory Support | Yes |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 3 |
| Multi-GPU Support | 2-Way NVIDIA SLI, 3-Way AMD CrossFireX |
| PCI Express Slot | 2 x PCIe 3.0 x16 (x16 or dual x8), 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1 |
| Audio Chipset. | ROG SupremeFX |
| Audio Channel | 7.1 |
| LAN Chipset | Marvell AQtion AQC107 & Intel I225-V |
| LAN Speed (Mbps) | 10Gbps, 2.5Gbps |
| WiFi | Yes |
| WiFi Technology | Intel Wi-Fi 6 AX201 |
| Bluetooth | Bluetooth 5.1 |

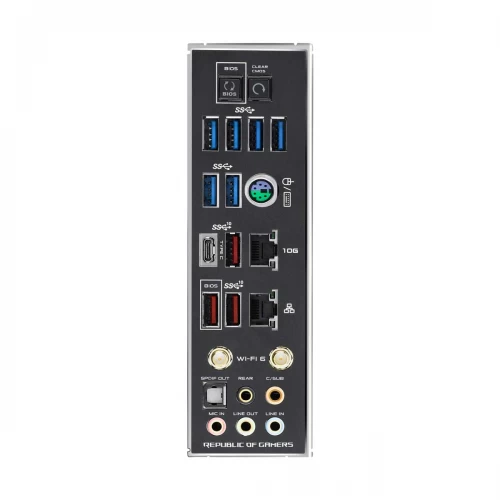

| USB Port | 1 x USB3.2 Gen 2 Type-C, 4 x USB3.2 Gen 2 Type-A, 10 x USB3.2 Gen 1 Type-A, 4 x USB2.0 |
| SATA Port | 6 x SATA |
| Thunderbolt | 1 |
| CrossFire Support | Yes |
| Sli Support | Yes |
| Raid Support | 0, 1, 5, 10 |
| Form Factor | ATX |
| BIOS Type | 1 x 256 Mbit Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| Supported Operating System | Windows 10 |
| Warranty | 3 Years Replacement Warranty |
| Feature | LGA 1200 socket for 10th-gen Intel Core desktop processors, AI Feature, AI Overclocking, AI Cooling and AI Networking (GameFirst VI), Robust power delivery, Optimized power solution with 16 power stages, ProCool II power connectors, MicroFine Alloy chokes and 10K capacitors, Cooling & Performance, OptiMem III, CrossChill EK III, 16 teamed power stages with extended heatsink, high conductive thermal pad, ROG water cooling zone, M.2 heatsink and backplate, Intel Wi-Fi 6, 10 Gb Ethernet and Intel 2.5 Gb Ethernet, triple M.2 slots, ATX motherboard for 10th Gen Intel Processor with 16 power stages, EK CrossChill III, OptiMem III, triple M.2, on-board Wi-Fi 6 (AX201), 10 Gb Ethernet and 2.5 Gb Ethernet, USB 3.2 Gen 2, Aura Sync RGB lighting |
| Others | Wireless Data Network: Intel Wi-Fi 6 AX201, Bluetooth 5.1, 1 x CPU Fan connector(s), 1 x AAFP connector, 2 x Aura RGB Strip Headers, 2 x Addressable Gen 2 header(s), 1 x Thunderbolt header(s), 1 x Thermal sensor connector(s), 1 x System panel connector, 1 x Speaker connector, 1 x Start button, 1 x FlexKey button, 1 x Clear CMOS button(s), 1 x USB BIOS FlashBack Button(s), 1 x ASUS Wi-Fi Module, 5 x Gold-plated audio jacks, 1 x Aquantia AQC-107 10G LAN port |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
