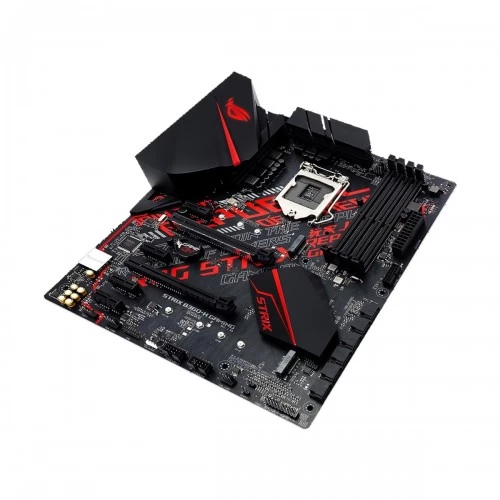

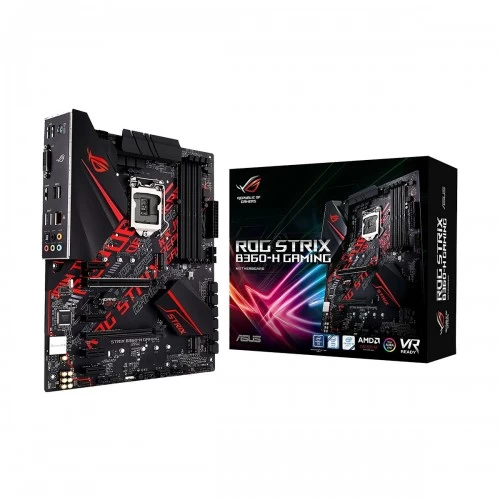

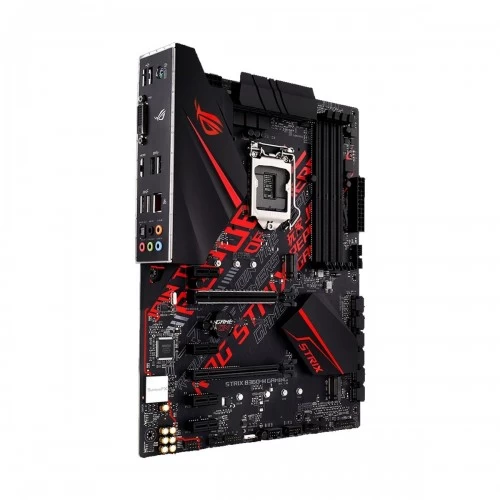

Asus ROG STRIX B360-H GAMING DDR4 8th/9th Gen Intel Motherboard
Model : Asus ROG STRIX B360-H GAMING
Chipset : Intel B360
Memory Slot : 4
Supported CPU : 9th/8th Generation Intel Core Processors
Generation : 8th/9th
Features : ROG RAMCache II, ROG CPU-Z, ROG CloneDrive, Overwolf, GameFirst IV, Gamers Guardian, AURA, AI Suite 3, Ai Charger
Warranty : 3 year
Additional information
| Brand | Asus |
|---|---|
| Model | Asus ROG STRIX B360-H GAMING |
| Chipset | Intel B360 |
| Sockets Supported | LGA1151 |
| Supported CPU | 9th/8th Generation Intel Core Processors |
| Generation | 8th/9th |
| Memory Type | DDR4 |
| Memory MHz | 2666/ 2400/ 2133MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 64GB |
| Optane Memory Support | Yes |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| Graphics | Integrated Graphics |
| Multi-GPU Support | AMD 2-Way CrossFireX |
| PCI Express Slot | 2 x PCIe 3.0/2.0 x16 (x16/x4), 4 x PCIe 3.0/2.0 x1 |
| Audio Chipset. | ROG SupremeFX |
| Audio Channel | 8 |
| LAN Chipset | Intel I219V |
| LAN Speed (Mbps) | 10/100/1000Mbps |
| WiFi | No |
| Bluetooth | No |
| USB Port | 2 x USB3.1 Gen 2, 4 x USB3.1 Gen 1, 6 x USB2.0 |
| DVI Port | 1 |
| HDMI Port | 1 |
| SATA Port | 6 x SATA |
| TPM Port | Yes |
| COM Port | No |
| FireWire | No |
| CrossFire Support | Yes |
| Sli Support | No |
| Raid Support | No |
| RGB Support | Yes |
| RGB Sync | Aura Sync |
| RGB Connector | 1 x Aura RGB Strip Header |
| Form Factor | ATX |
| BIOS Type | 1 x 128 Mbit Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| BIOS Version | PnP, SM BIOS 3.1, ACPI 6.1 |
| Supported Operating System | Windows 10 |
| Warranty | 3 year |
| Feature | ROG RAMCache II, ROG CPU-Z, ROG CloneDrive, Overwolf, GameFirst IV, Gamers Guardian, AURA, AI Suite 3, Ai Charger, ASUS Quiet Thermal Solution, ASUS EZ DIY, ASUS Q-Design |
| Others | 2 x M.2 Socket 3, 1 x AAFP connector, 1 x Aura RGB Strip Header, 1 x TPM connector(s), 1 x CPU Fan connector(s), 1 x Clear CMOS jumper, 1 x Thermal sensor connector, 5 x Audio jack |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
