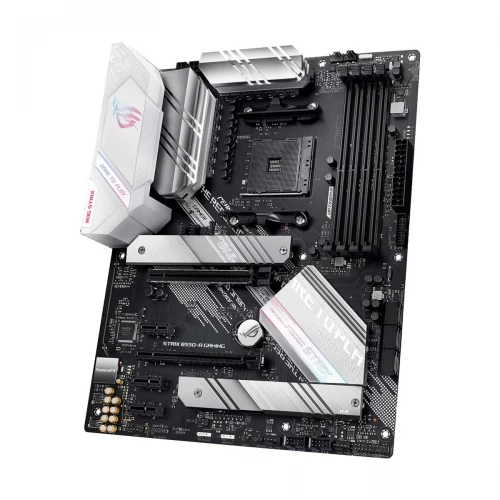

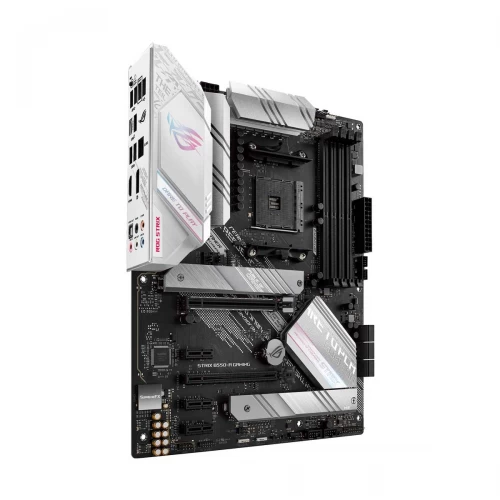

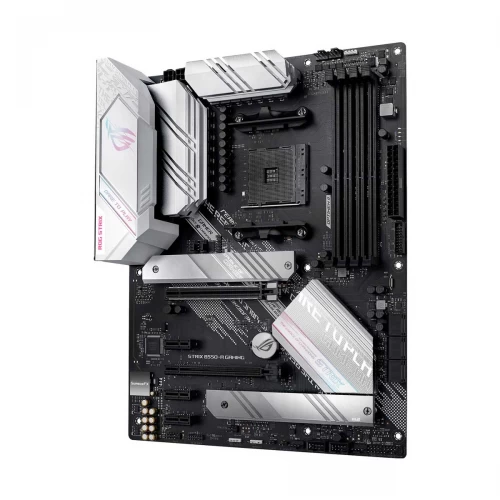

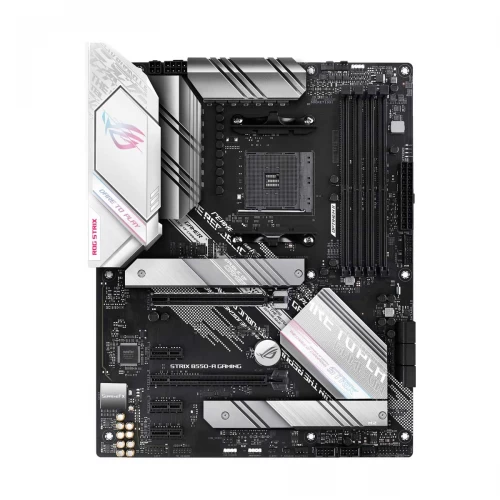

Asus ROG STRIX B550-A GAMING DDR4 AMD AM4 Motherboard
Model : Asus ROG STRIX B550-A GAMING
Chipset : AMD B550
Memory Slot : 4
Supported CPU : AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Features : Supports Triple Monitor, HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) 30Hz,Best gaming connectivity, PCIe 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C plus HDMI 2.1 and DisplayPort 1.2 output support, Smooth networking, Intel 2.5Gb Ethernet with ASUS LANGuard, Robust power solution
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus ROG STRIX B550-A GAMING |
| Chipset Brand | AMD |
| Chipset | AMD B550 |
| Sockets Supported | AM4 |
| Supported CPU | AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Memory Type | DDR4 |
| Memory MHz | 5100(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| Graphics Chipset | Integrated Graphics |
| Multi-GPU Support | AMD 2-Way CrossFireX |
| PCI Express Slot | 1 x PCIe 4.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x4 mode), 3 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x16 mode) |
| Audio Chipset. | ROG SupremeFX |
| Audio Channel | 8 |
| LAN Chipset | Intel I225-V |
| LAN Speed (Mbps) | 2.5Gbps |
| USB Port | 1 x USB3.2 Gen 2 Type-C, 1 x USB3.2 Gen 2 Type-A, 6 x USB3.2 Gen 1 Type-A, 6 x USB2.0 |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 6 x SATA |
| Thunderbolt | 1 |
| CrossFire Support | Yes |
| Sli Support | No |
| Raid Support | 0,1,10 |
| RGB Support | Yes |
| RGB Sync | Aura Sync |
| RGB Connector | 2 x Aura RGB Strip Header |
| Form Factor | ATX |
| BIOS Type | 1 x 256 Mbit Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| Supported Operating System | Windows 10 |
| Warranty | 3 Years Replacement Warranty |
| Feature | Best gaming connectivity, PCIe 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C plus HDMI 2.1 and DisplayPort 1.2 output support, Smooth networking, Intel 2.5Gb Ethernet with ASUS LANGuard, Robust power solution, Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors, Renowned software, Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds, DIY-friendly design, Includes pre-mounted I/O shield, BIOS FlashBack, Q-LEDs and SafeSlot, Unmatched personalization, ASUS-exclusive Aura Sync RGB lighting, including Aura RGB header and addressable Gen 2 RGB header, Industry-leading gaming audio, AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III for immersive audio, AM4 Gaming ATX motherboard with PCIe 4.0, teamed power stages, Intel 2.5Gb Ethernet, dual M.2 with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB |
| Others | 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 3 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 1 x AAFP connector, 2 x Aura RGB Strip Header(s), 1 x Addressable Gen 2 header(s), 1 x Thunderbolt header(s), 1 x System panel(s), 1 x Thermal sensor connector(s), 1 x Clear CMOS jumper(s), 1 x BIOS FlashBack Button(s), 5 x Gold-plated audio jacks |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
