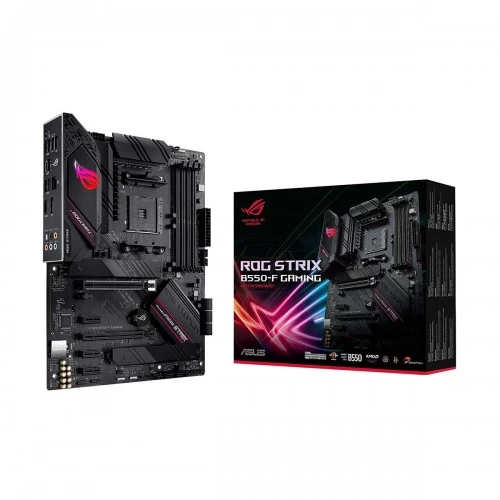

Asus ROG STRIX B550-F GAMING DDR4 AMD AM4 Socket Motherboard
Model : Asus ROG STRIX B550-F GAMING
Chipset : AMD B550
Memory Slot : 4
Supported CPU : AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Features : Aura Sync – Standard RGB header – Addressable Gen 2 RGB header, ASUS Q-Design – ASUS Q-DIMM – ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus ROG STRIX B550-F GAMING |
| Chipset Brand | AMD |
| Chipset | AMD B550 |
| Sockets Supported | AM4 |
| Supported CPU | AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Memory Type | DDR4 |
| Memory MHz | 4400(O.C)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| Graphics | Integrated Graphics |
| Multi-GPU Support | 2-Way AMD CrossFireX Technology |
| PCI Express Slot | 2 PCIe 3.0 x16, 3 PCIe 3.0 x1 |
| Audio Chipset. | ROG SupremeFX |
| Audio Channel | 8 |
| LAN Chipset | Intel I225-V |
| LAN Speed (Mbps) | 2.5Gb |
| USB Port | 2 x USB 3.2 Gen 2 Type-C, 5 x USB 3.2 Gen 1, 4 x USB 2.0 |
| HDMI Port | 1 |
| SATA Port | 6 x SATA |
| Thunderbolt | 1 |
| CrossFire Support | Yes |
| Raid Support | 0, 1, 10 |
| RGB Support | Yes |
| RGB Sync | Aura Sync |
| RGB Connector | 2 x Aura RGB Strip Header |
| Form Factor | ATX |
| BIOS Type | 256 Mb Flash |
| BIOS Model | AMI UEFI BIOS |
| Supported Operating System | Windows 10 |
| Warranty | 3 Years Replacement Warranty |
| Feature | Aura Sync – Standard RGB header – Addressable Gen 2 RGB header, ASUS Q-Design – ASUS Q-DIMM – ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) – ASUS Q-Slot, ASUS Thermal Solution – Aluminum M.2 heatsink, ASUS EZ DIY -BIOS FlashBack button -BIOS FlashBack LED -Clear CMOS header -ProCool -Pre-mounted I/O shield – SafeSlot |
| Others | 1 x Thunderbolt header, 1 x 24-pin EATX Power connector, 1 x 8-pin ATX 12V Power connector, 1 x 4-pin ATX 12V Power connector, 1 x System panel, 1 x Thermal sensor connector, 1 x Clear CMOS jumper, 1 x CPU Fan connector, 1 x CPU OPT Fan connector, 3 x Chassis Fan connector, 1 x AIO_PUMP connector, 1 x AAFP connector, 2 x Aura RGB Strip Header, 1 x Addressable Gen 2 header, 1 x Intel I225-V 2.5Gb Ethernet, 1 x DisplayPort, 1 x HDMI, 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C), 4 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x Optical S/PDIF out, 1 x BIOS FlashBack Button, 5 x Gold-plated audio jacks |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
