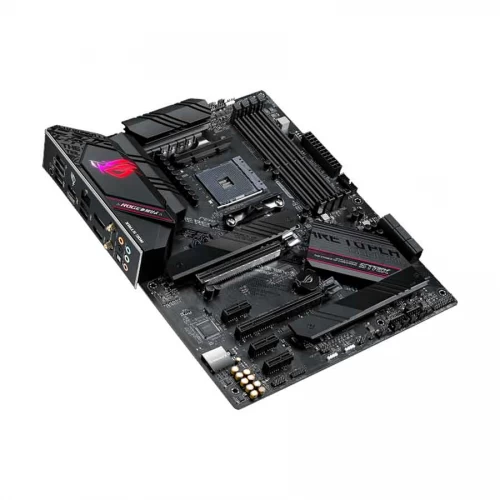

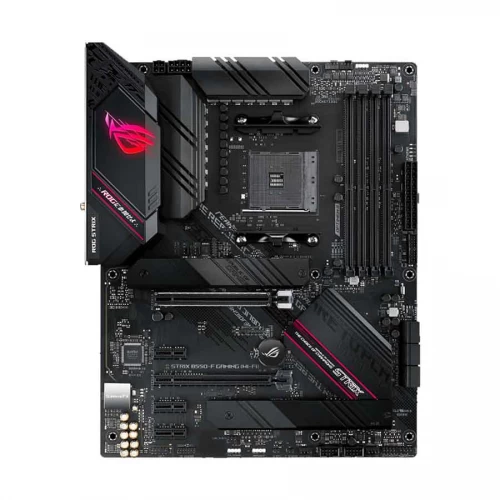

Asus ROG STRIX B550-F GAMING (Wi-Fi 6) II DDR4 AMD AM4 Socket Motherboard
Model : Asus ROG STRIX B550-F GAMING (Wi-Fi 6) II
Chipset : AMD B550
Memory Slot : 4
Supported CPU : AMD Ryzen 5000, 5000 G, 4000 G, 3000 Series Processors
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus ROG STRIX B550-F GAMING (Wi-Fi 6) II |
| Chipset Brand | AMD |
| Chipset | AMD B550 |
| Sockets Supported | AM4 |
| Supported CPU | AMD Ryzen 5000, 5000 G, 4000 G, 3000 Series Processors |
| Memory Type | DDR4 |
| Memory MHz | AMD Ryzen 5000 & 3000 Series: 4800(O.C.)/ 4666(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz. AMD Ryzen 5000 & 4000 Series: 5100(O.C)/ 4866(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 |
| Memory Slot | 4 |
| Memory Slot (Additional Info) | 4 x DIMM |
| Memory Max. | 128GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| PCI Express Slot | 1 x PCIe 4.0 x16 Slot, 1 x PCIe 3.0 x16 slot, 3 x PCIe 3.0 x1 slots |
| Audio Chipset. | ROG SupremeFX High Definition Audio CODEC S1220A |
| Audio Channel | 7.1 |
| LAN Chipset | Intel I225-V 2.5G |
| WiFi | Yes |
| WiFi Technology | Wi-Fi 6E, 2×2 (802.11 a/b/g/n/ac/ax), 2.4/ 5/ 6GHz |
| Bluetooth | Bluetooth 5.2 |
| USB Port | 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 6 x SATA |
| CrossFire Support | No |
| Sli Support | No |
| Raid Support | 0, 1, 10 |
| RGB Support | Yes |
| RGB Connector | 2 x AURA RGB headers |
| Form Factor | ATX |
| BIOS Type | 256 Mb Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| Warranty | 3 Years Replacement Warranty |
| Others | Back Panel I/O Ports: 1 x Wi-Fi Module, 1 x Intel I225-V 2.5G Ethernet, 1 x Optical S/PDIF out, 5 x Audio jacks, 1 x BIOS FlashBack button. Internal I/O Connectors: 1 x 4-Pin AIO_Pump header, 1 x 4-Pin CPU fan header, 1 x 4-Pin CPU_OPT fan header, 3 x 4-Pin Chassis fan headers, 1 x 24-pin main power connector, 1 x 8-pin +12V power connector, 1 x 4-pin +12V power connector, 1 x Addressable Gen 2 header, 1 x Clear CMOS header, 1 x Front panel audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thermal sensor header, 1 x Thunderbolt header |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
