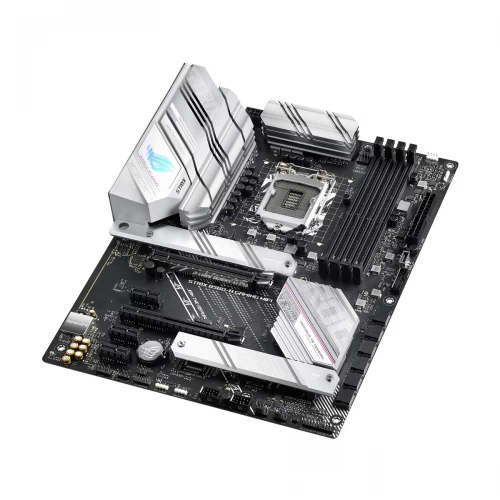

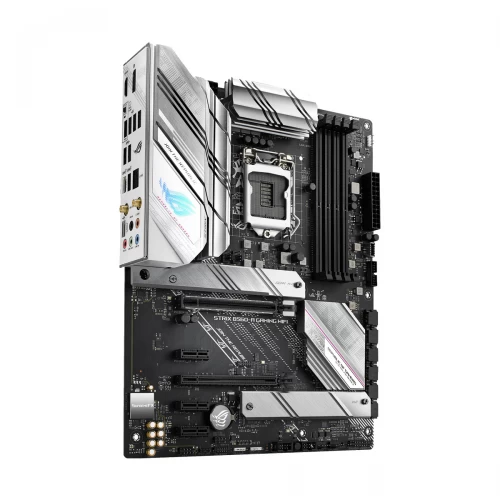

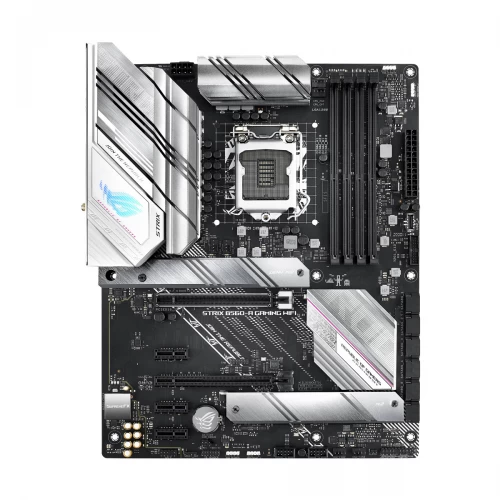

Asus ROG STRIX B560-A GAMING (Wi-Fi 6) Intel LGA1200 Motherboard
Model : Asus ROG STRIX B560-A GAMING (Wi-Fi 6)
Chipset : Intel B560
Memory Slot : 4
Supported CPU : 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors\
Generation : 10th/11th
Features : SupremeFX Shielding Technology Audio Features , Savitech SV3H712 AMP, Premium Japanese audio capacitors, Audio cover, 5K Black Metallic Capacitors, M.2 Q-Latch, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white]
Warranty : 3 year
Additional information
| Brand | Asus |
|---|---|
| Model | Asus ROG STRIX B560-A GAMING (Wi-Fi 6) |
| Chipset Brand | Intel |
| Chipset | Intel B560 |
| Sockets Supported | LGA1200 |
| Supported CPU | 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors |
| Generation | 10th/11th |
| Memory Type | DDR4 |
| Memory MHz | 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| Graphics | Integrated |
| PCI Express Slot | 1 x PCIe 4.0/3.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 3 x PCIe 3.0 x1 |
| Audio Chipset. | ROG SupremeFX Audio CODEC S1220A |
| Audio Channel | 7.1 |
| LAN Chipset | Realtek 2.5Gb Ethernet |
| LAN Speed (Mbps) | 10/100/1000/2500Mb/s |
| WiFi | Yes |
| WiFi Technology | Wi-Fi 6 802.11 a, b, g, n, ac, ax (2×2) |
| Bluetooth | Bluetooth 5.2 |
| USB Port | 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 5 x USB 2.0 (4 x Type-A, 1 x audio USB Type-C) |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 6 x SATA |
| Thunderbolt | 1 |
| TPM Port | 1 |
| CrossFire Support | No |
| Sli Support | No |
| RGB Support | Yes |
| RGB Sync | Aura Sync |
| RGB Connector | 2 x AURA RGB headers |
| Form Factor | ATX |
| BIOS Type | 128Mb Flash |
| BIOS Model | AMI EFI BIOS |
| Supported Operating System | Windows 10 |
| Warranty | 3 year |
| Feature | SupremeFX Shielding Technology Audio Features , Savitech SV3H712 AMP, Premium Japanese audio capacitors, Audio cover, 5K Black Metallic Capacitors, M.2 Q-Latch, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot, M.2 heatsink, BIOS FlashBack LED, ProCool, Pre-mounted I/O shield, SafeSlot, RAMCache III, ROG CPU-Z, GameFirst VI, Sonic Studio III + Sonic Studio Virtual Mixer, Sonic Radar III, DTS Sound Unboun, Overwolf, Anti-virus software, Armoury Crate, AIDA64 Extreme (60 days free trial), AURA Creator, AURA Sync, Two-Way AI Noise Cancelation, – Performance And Power Saving Utility, TurboV EVO, EPU, DIGI+ VRM, Fan Xpert 4, EZ update, MyAsus, WinRAR, DAEMON Tools, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, WOL by PME, PXE |

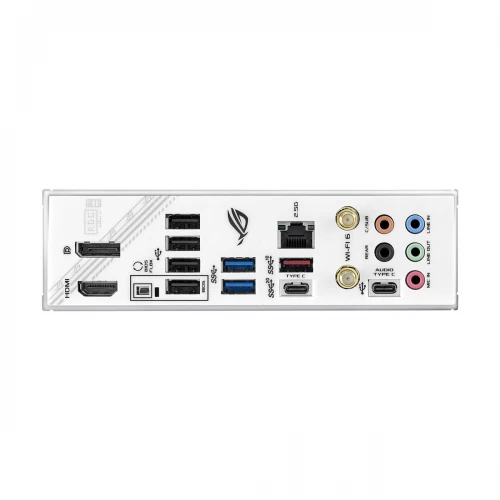

| Others | USB Connector: (1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers supports additional 4 USB 2.0 ports,) Back Panel I/O Ports: (1 x ASUS Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet, 5 x Audio jacks, 1 x BIOS FlashBack button), Intrernal I/O Connectors: (1 x TB Header, 1 x 4-pin CPU Fan header(s), 1 x 4-pin CPU OPT Fan header(s), 1 x 4-pin AIO Pump header(s), 3 x 4-pin Chassis Fan header(s), 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 2 x AURA Addressable Gen 2 header(s), 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x 20-5 pin System Panel heade, 1 x S/PDIF Out header) |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
