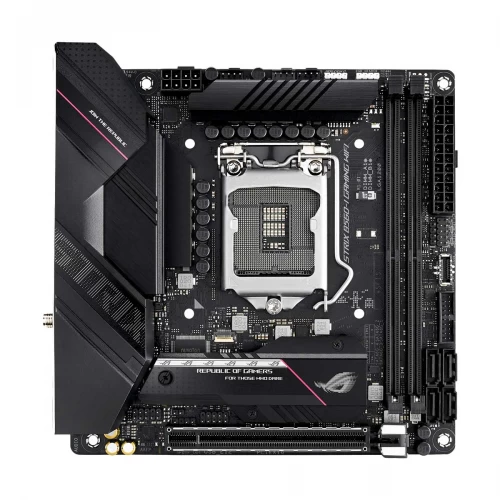

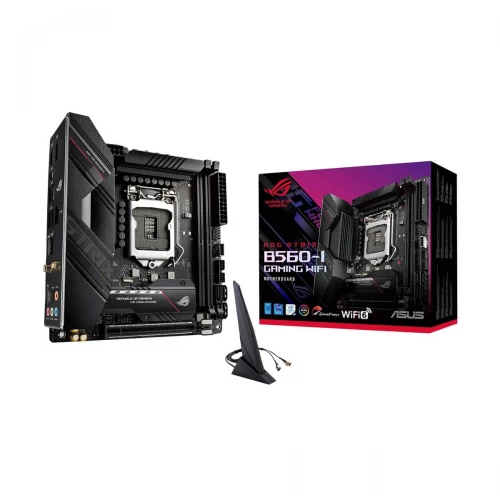

Asus ROG STRIX B560-I GAMING Wi-Fi 6 DDR4 10th/11th Gen Motherboard
Model : Asus ROG STRIX B560-I GAMING (Wi-Fi 6)
Chipset : Intel B560
Supported CPU : 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Generation : 10th/11th
Features : Intel LGA 1200 socket: Ready for 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold and Celeron processors
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus ROG STRIX B560-I GAMING (Wi-Fi 6) |
| Chipset Brand | Intel |
| Chipset | Intel B560 |
| Sockets Supported | LGA1200 |
| Supported CPU | 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors |
| Generation | 10th/11th |
| Memory Type | DDR4 |
| Memory MHz | 5333(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz |
| Memory Channel | Dual |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| Audio Chipset. | ROG SupremeFX CODEC S1220A |
| Audio Channel | 7.1 |
| LAN Chipset | Realtek 2.5Gb Ethernet |
| LAN Speed (Mbps) | 10/100/1000/2500 Mb/s |
| WiFi | Yes |
| WiFi Technology | Wi-Fi 6 802.11 a, b, g, n, ac, ax (2×2) |
| Bluetooth | Bluetooth 5.0 |

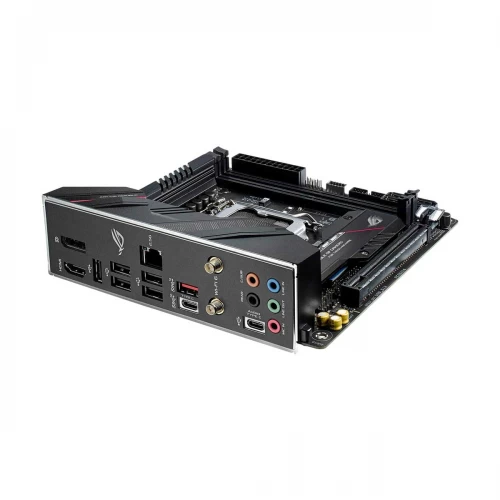

| USB Port | 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 1, 6 x USB 2.0 Type-A, 1 x USB 2.0 Type-C |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 4 |
| RGB Support | Yes |
| RGB Sync | Aura Sync |
| RGB Connector | 1 x AURA RGB header |
| Form Factor | Mini-ITX |
| BIOS Type | 128 Mb Flash |
| BIOS Model | UEFI AMI BIOS |
| Supported Operating System | Windows 10 |
| Warranty | 3 Years Replacement Warranty |
| Feature | Intel LGA 1200 socket: Ready for 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold and Celeron processors. Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors. Smooth Networking: On-board Intel WiFi 6 (802.11ax) and Realtek 2.5 Gb Ethernet with ASUS LANGuard. Best Gaming Connectivity: Supports HDMI 2.0 and DisplayPort1.4 output, two M.2 slots, and USB 3.2 Gen 2×2 USB Type-C. DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield and Q-LED. Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB header and Gen 2 addressable header. Industry-Leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS Sound Unbound and Sonic Studio III |
| Others | 1 x 4-pin CPU Fan header, 1 x 4-pin AIO Pump header, 1 x 4-pin Chassis Fan header, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 5 x Audio jacks |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
