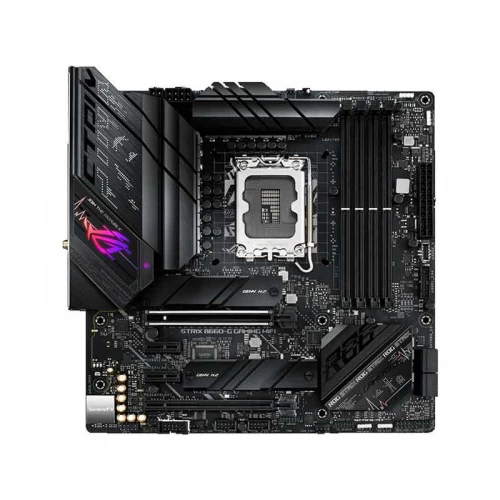

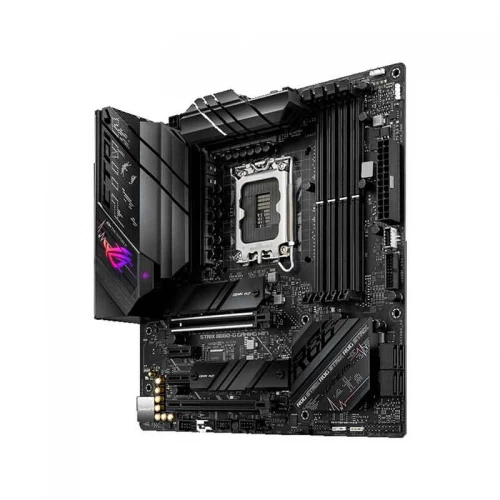

Asus ROG STRIX B660-G GAMING (Wi-Fi 6) DDR5 12th/13th Gen Intel Motherboard
Model : Asus ROG STRIX B660-G GAMING (Wi-Fi 6)
Chipset : Intel B660
Memory Slot : 4
Supported CPU : Intel Core, Pentium Gold and Celeron Processors
Generation : 12th/13th
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus ROG STRIX B660-G GAMING (Wi-Fi 6) |
| Chipset Brand | Intel |
| Chipset | Intel B660 |
| Sockets Supported | LGA1700 |
| Supported CPU | Intel Core, Pentium Gold and Celeron Processors |
| Generation | 12th/13th |
| Memory Type | DDR5 |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Optane Memory Support | Yes |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| PCI Express Slot | 1 x PCIe 5.0 x16 slot(s), 1 x PCIe 3.0 x16 slot (supports x4 mode), 2x PCIe 4.0 x1 slots |
| Audio Chipset. | ROG Supreme FX 7.1 CODEC S1220A |
| LAN Chipset | Intel 2.5Gb Ethernet |
| WiFi | Yes |
| WiFi Technology | Wi-Fi 6, 2 x 2 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band |
| Bluetooth | Bluetooth 5.2 |
| USB Port | 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 1 Type -C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 4 x SATA |
| TPM Port | 1 |
| COM Port | 1 |
| CrossFire Support | No |
| Sli Support | No |
| RGB Support | Yes |
| RGB Connector | 1 x AURA RGB header(s) |
| Form Factor | Micro-ATX |
| BIOS Type | 256 Mb Flash ROM |
| BIOS Version | UEFI AMI BIOS |
| Supported Operating System | Windows 10/ 11 |
| Warranty | 3 Years Replacement Warranty |

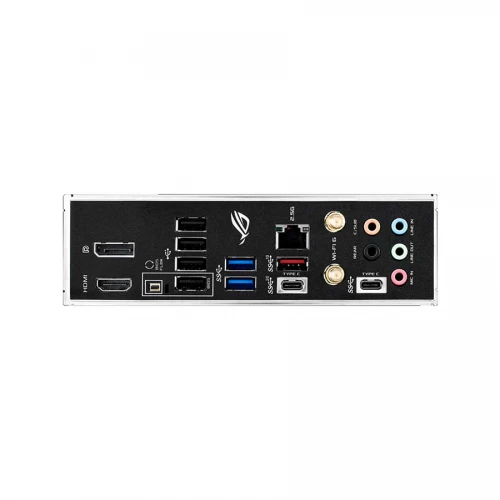

| Others | Back Panel I/O Ports: 1 x Wi-Fi Module, 1 x Intel 2.5Gb Ethernet port, 5 x Audio jacks, 1 x BIOS FlashBack button. Internal I/O Connectors: 1 x 4-pin CPU Fan header(s), 1 x 4-pin AIO Pump header(s), 2 x 4-pin Chassis Fan header(s), 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector. Miscellaneous: 3 x Addressable Gen 2 header(s), 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thermal Sensor header, 1 x Thunderbolt header |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
