Asus ROG STRIX TRX40-XE GAMING WiFi 6 DDR4 AMD Motherboard
Model : Asus ROG STRIX TRX40-XE GAMING
Chipset : AMD TRX40
Memory Slot : 8
Supported CPU : AMD Ryzen 3rd Generation Threadripper Series Desktop Processors

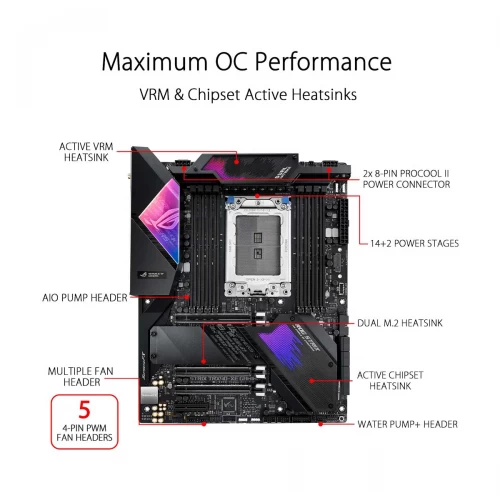

Features : 5-Way Optimization by Dual Intelligent Processors 5, ASUS EZ DIY, ASUS Q-Design, Optimal Power Solution, 16 power stages with ProCool II power connector, high-quality chokes and durable 70A capacitors to support multi-core processors
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus ROG STRIX TRX40-XE GAMING |
| Chipset Brand | AMD |
| Chipset | AMD TRX40 |
| Sockets Supported | sTRX4 |
| Supported CPU | AMD Ryzen 3rd Generation Threadripper Series Desktop Processors |
| Memory Type | DDR4 |
| Memory MHz | 4666(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4333(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 2800/ 2666/ 2400/ 2133MHz |
| Memory Channel | Quad |
| Memory Slot | 8 |
| Memory Max. | 256GB |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 3 |
| Multi-GPU Support | 2-Way NVIDIA SLI, 2-Way AMD CrossFireX |
| PCI Express Slot | 3 x PCIe 4.0 x16 (x16/x16/x16), 1 x PCIe 4.0 x4 |
| Audio Chipset. | ROG SupremeFX |
| Audio Channel | 8 |
| LAN Chipset | Intel I211-AT & Realtek RTL8125-CG |
| LAN Speed (Mbps) | 10/100/1000 & 2.5G |
| WiFi | Yes |
| WiFi Technology | Intel Wi-Fi 6 AX200, Wi-Fi 802.11 ax, Supports dual band frequency 2.4/5 GHz, Supports 2×2 MU-MIMO, Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed |
| Bluetooth | Bluetooth 5.0 |
| USB Port | 1 x USB3.2 Gen 2 Type-C, 7 x USB3.2 Gen 2 Type-A, 2 x USB3.2 Gen 1, 6 x USB2.0 |
| SATA Port | 8 x SATA |
| TPM Port | 1 |
| CrossFire Support | Yes |
| Sli Support | Yes |
| Raid Support | 0,1,10 |
| RGB Support | Yes |
| RGB Sync | Aura Sync |
| RGB Connector | 2 x Aura RGB Strip Header |
| Form Factor | ATX |
| BIOS Type | 1 x 128 Mbit Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| BIOS Version | PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
| Supported Operating System | Windows 10 |
| Warranty | 3 Years Replacement Warranty |
| Feature | 5-Way Optimization by Dual Intelligent Processors 5, ASUS EZ DIY, ASUS Q-Design, Optimal Power Solution, 16 power stages with ProCool II power connector, high-quality chokes and durable 70A capacitors to support multi-core processors, Comprehensive cooling, Active cooling VRM and Chipset heatsink, stacked-fin heatsink, with on-board dual M.2 heatsinks and a water pump+ header, Gaming connectivity, Three M.2, USB 3.2 Gen 2 Type-C port and Type-C front panel connector, Gaming networking, 2.5Gbps LAN and Intel Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO, and gateway teaming via GameFirst V, Gaming audio, High fidelity audio with SupremeFX S1220, DTS Sound Unbound and Sonic Studio III to draw deeper into the action |
| Others | 2 x Aura RGB Strip Header, 2 x Addressable Gen 2 header(s), 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 3 x Chassis Fan connector(s), 1 x Thermal sensor connector(s), 1 x Clear CMOS jumper(s), 1 x Node Connector(s), 1 x System panel connector, 1 x USB 3.2 Gen 2 front panel connector, 1 x Speaker connector, 5 x Audio jack(s) |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
