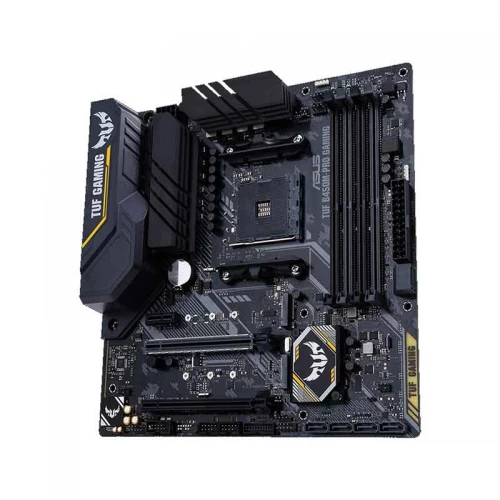

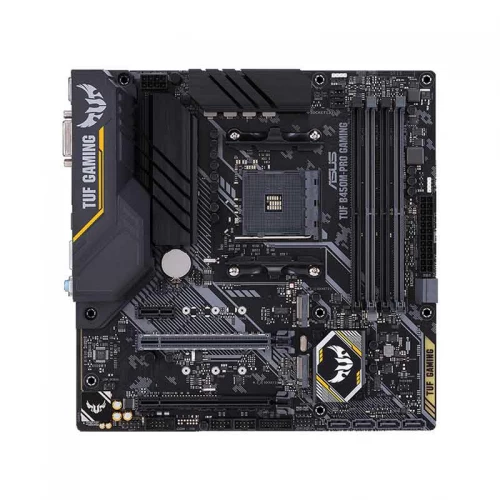

Asus TUF B450M-PRO GAMING DDR4 AMD Motherboard
Model : Asus TUF B450M-PRO GAMING
Chipset : AMD B450
Memory Slot : 4
Supported CPU : AMD Ryzen 5000, 5000 G, 4000 G, 3rd/2nd/1st Gen AMD Ryzen, 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus TUF B450M-PRO GAMING |
| Chipset Brand | AMD |
| Chipset | AMD B450 |
| Sockets Supported | AM4 |
| Supported CPU | AMD Ryzen 5000, 5000 G, 4000 G, 3rd/2nd/1st Gen AMD Ryzen, 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors |
| Memory Type | DDR4 |
| Memory MHz | 4400(O.C)/ 3533(O.C)/ 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| Multi-GPU Support | AMD CrossFireX Technology |
| PCI Express Slot | 1 x PCIe 3.0/ 2.0 x16 (3rd/ 2nd/ 1st Gen AMD Ryzen Processors), 1 x PCIe 3.0/ 2.0 x16 (2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics), 1 x PCIe 3.0/ 2.0 x16 (AMD Athlon), 1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1 |
| Audio Channel | 8 |
| LAN Chipset | Realtek RTL8111H |
| WiFi | No |
| USB Port | 2 x USB 2.0 Type-A, 2 x USB 3.1 Gen 1 Type-A, 1 x USB 3.1 Gen 2 Type-A, 1 x USB 3.1 Gen 1 USB Type-C |
| DVI Port | 1 |
| HDMI Port | 1 |
| SATA Port | 2 x SATA |
| COM Port | 1 |
| CrossFire Support | Yes |
| Sli Support | No |
| RGB Support | Yes |
| RGB Connector | 2 x Aura RGB Strip Header |
| Form Factor | Micro-ATX |
| BIOS Type | 128 Mb Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| Supported Operating System | Windows 7 / 10 |
| Warranty | 3 Years Replacement Warranty |

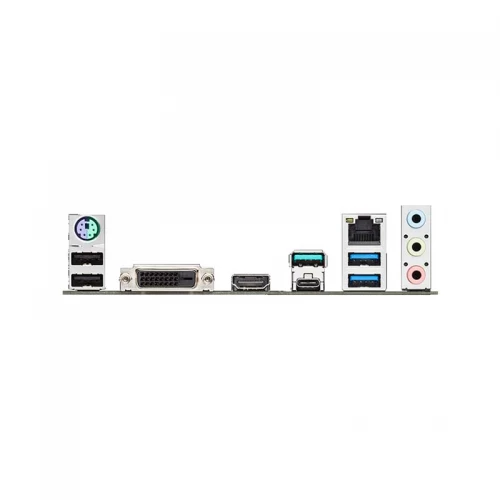

| Others | Back I/O Ports: 1 x PS/ 2 keyboard/ mouse combo port, 1 x LAN (RJ45) port, 3 x Audio jack. Internal I/O Ports: 1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 2 x Chassis Fan connector(s) (2 x 4 -pin), 1 x S/PDIF out header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s), 1 x Clear CMOS jumper(s), 1 x Speaker connector. Manageability: WOL by PME, PXE. |
