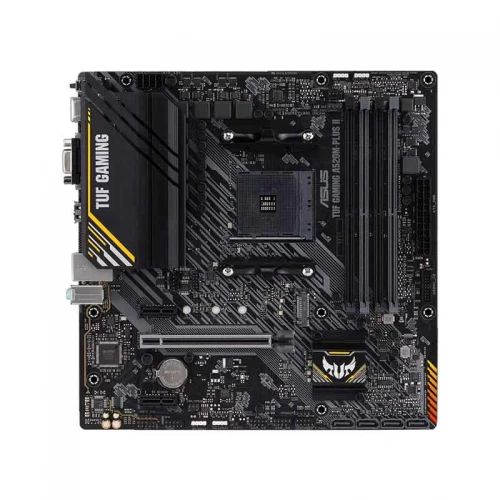

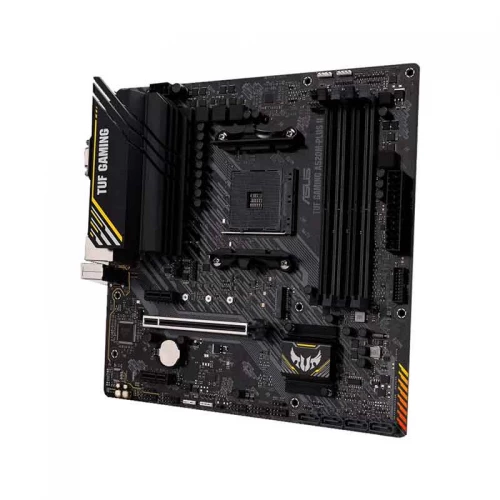

Asus TUF GAMING A520M-PLUS II DDR4 AMD Motherboard
Model : Asus TUF GAMING A520M-PLUS II
Chipset : AMD A520
Memory Slot : 4
Supported CPU : AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus TUF GAMING A520M-PLUS II |
| Chipset Brand | AMD |
| Chipset | AMD A520 |
| Sockets Supported | AM4 |
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Memory Type | DDR4 |
| Memory MHz | 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/2666/2 400/ 2133 MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Slot (Additional Info) | 4 x DIMM |
| Memory Max. | 128GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 1 |
| PCI Express Slot | 1 x PCIe 3.0 x16 slot (supports x16 mode), 2 x PCIe 3.0 x1 slots |
| Audio Chipset. | Realtek ALC887/897 |
| Audio Channel | 7.1 |
| LAN Chipset | Realtek 1Gb Ethernet |
| LAN Speed (Mbps) | 10 / 100 / 1000Mbps |
| WiFi | No |
| Bluetooth | No |
| USB Port | 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
| VGA Port | 1 |
| DVI Port | No |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 4 x SATA |
| Thunderbolt | No |
| TPM Port | 1 |
| COM Port | 1 |
| CrossFire Support | No |
| Sli Support | No |
| Raid Support | 0,1,10 |
| RGB Support | Yes |
| RGB Connector | 2 x AURA RGB headers |
| Form Factor | Micro-ATX |
| BIOS Type | 128 Mb Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| Warranty | 3 Years Replacement Warranty |

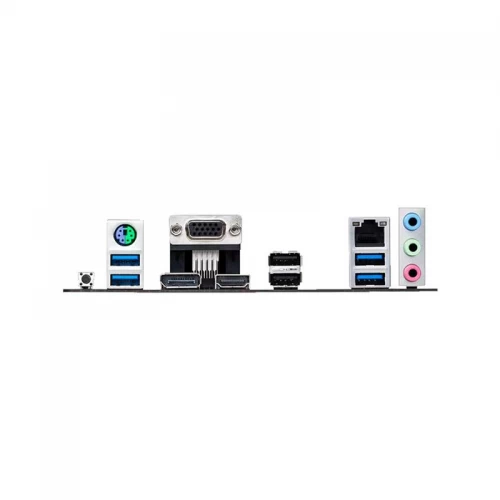

| Others | Back Panel I/O Ports: 1 x Realtek 1Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port. Internal I/O Connectors: 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 2 x AURA Addressable Gen 2 header, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x 10-1 pin System Panel header |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
