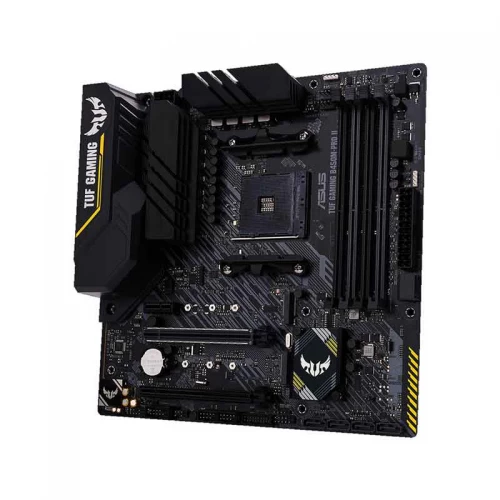

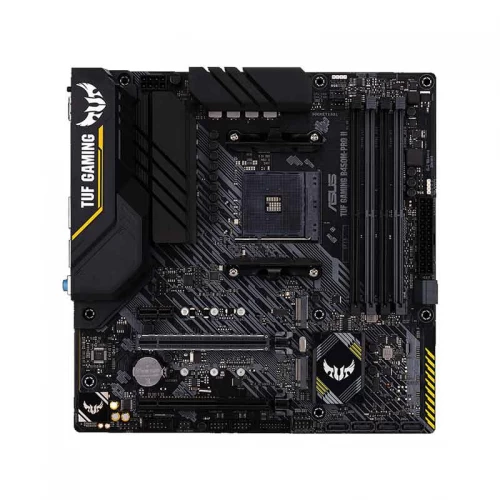

Asus TUF GAMING B450M-PRO II DDR4 AMD Motherboard
Model : Asus TUF GAMING B450M-PRO II
Chipset : AMD B450
Memory Slot : 4
Supported CPU : AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/ 2nd/ 1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus TUF GAMING B450M-PRO II |
| Chipset Brand | AMD |
| Chipset | AMD B450 |
| Sockets Supported | AM4 |
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/ 2nd/ 1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors |
| Memory Type | DDR4 |
| Memory MHz | 4400(O.C)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3533(O.C)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Slot (Additional Info) | 4 x DIMM |
| Memory Max. | 128GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| PCI Express Slot | 1 x PCIe 3.0/ 2.0 x16 (3rd/ 2nd/ 1st Gen AMD Processors), 1 x PCIe 3.0/ 2.0 x16 (x8 mode, 2nd and 1st Gen AMD Ryzen with Graphics), 1 x PCIe 3.0/ 2.0 x16 (max at x4 mode, Athlon with Radeon Graphics), 1 x PCIe 2.0 x16 (x4 mode), 1 x PCIe 2.0 x1 (AMD B450) |
| Audio Chipset. | Realtek ALC S1200 |
| Audio Channel | 7.1 |
| LAN Chipset | Realtek RTL8111H 1Gb Ethernet |
| WiFi | No |
| USB Port | 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 6 x SATA |
| TPM Port | 1 |
| COM Port | 1 |
| CrossFire Support | Yes |
| Sli Support | No |
| Raid Support | 0, 1, 10 |
| RGB Support | Yes |
| RGB Sync | 2 x Aura RGB Strip Headers |
| Form Factor | Micro-ATX |
| BIOS Type | 256 Mb Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| Supported Operating System | Windows 10 / 7 |
| Warranty | 3 Years Replacement Warranty |

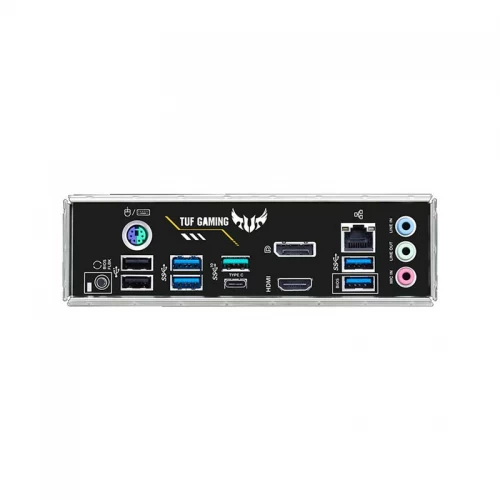

| Others | Back I/O Ports: 1 x PS/2 keyboard/mouse combo port(s), 1 x LAN (RJ45) port(s), 3 x Audio jack(s), 1 x BIOS FlashBack Button(s). Internal I/O Ports: 1 x CPU Fan connector(s), 2 x Chassis Fan connector(s), 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x SPI TPM header, 1 x S/PDIF out header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin EATX 12V Power connectors, 1 x Front panel audio connector(s) (AAFP), 1 x Clear CMOS jumper(s), 1 x System panel connector, 1 x COM port header, 1 x Speaker connector. Manageability: WOL by PXE |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
