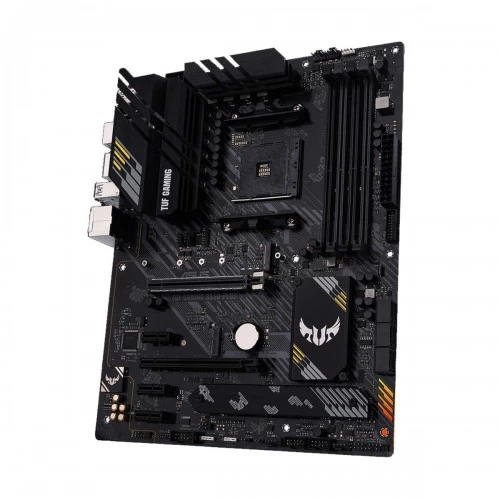

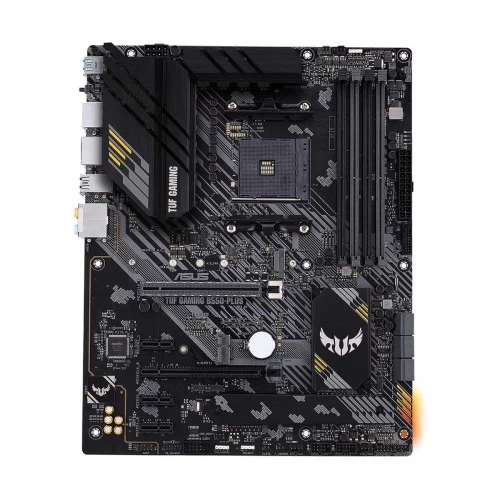

Asus TUF GAMING B550-PLUS DDR4 AMD AM4 Socket Motherboard
Model : Asus TUF GAMING B550-PLUS
Chipset : AMD B550
Memory Slot : 4
Supported CPU : AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Features : AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus TUF GAMING B550-PLUS |
| Chipset Brand | AMD |
| Chipset | AMD B550 |
| Sockets Supported | AM4 |
| Supported CPU | AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Memory Type | DDR4 |
| Memory MHz | AMD Ryzen 5000/ 3000 Series (4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133MHz), AMD Ryzen 4000 G-Series (4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133MHz) |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| Graphics | Integrated Graphics |
| Multi-GPU Support | 2-Way AMD CrossFireX Technology |
| PCI Express Slot | 1 PCIe 4.0 x16, 2 PCIe 3.0 x16, 3 PCIe 3.0 x1 |
| Audio Chipset. | Realtek ALC S1200A |
| Audio Channel | 7.1 |
| LAN Chipset | Realtek RTL8125B |
| LAN Speed (Mbps) | 2.5Gb |
| WiFi | No |
| USB Port | 2 x USB 3.2 Gen 2 Type-C, 5 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 |
| HDMI Port | 1 |
| SATA Port | 6 x SATA |
| Thunderbolt | 1 |
| CrossFire Support | Yes |
| Sli Support | No |
| Raid Support | 0, 1, 5, 10 |
| RGB Support | Yes |
| RGB Sync | Aura Sync |
| RGB Connector | 2 x Aura RGB Strip Headers |
| Form Factor | ATX |
| BIOS Type | 256 Mb Flash |
| BIOS Model | AMI UEFI BIOS |
| Supported Operating System | Windows 10 |
| Warranty | 3 Years Replacement Warranty |
| Feature | AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB lighting support, ASUS TUF PROTECTION – ASUS DIGI+ VRM (Digital power design with Dr. MOS) – ASUS Enhanced DRAM Overcurrent Protection – ASUS ESD Guards – TUF LANGuard – ASUS Overvoltage Protection – ASUS SafeSlot – ASUS Stainless-Steel Back I/O, ASUS Q-Design – ASUS Q-DIMM – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – ASUS Q-Slot, ASUS Thermal Solution – Aluminum M.2 heatsink, ASUS EZ DIY – BIOS FlashBack button – BIOS FlashBack LED – Procool, AURA Sync – Standard RGB headers – Addressable Gen 2 RGB header |

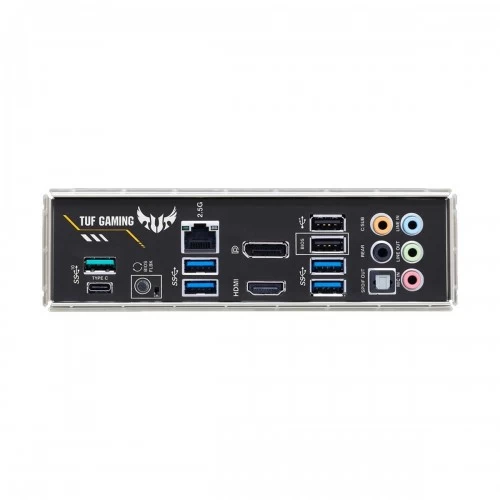

| Others | 1 x Thunderbolt header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 1 x System panel(s) (Chassis intrusion header is inbuilt), 1 x Thermal sensor connector(s), 1 x Clear CMOS jumper(s), 1 x CPU_OV jumper, 1 x VRM_HS_FAN Header, 1 x M.2_FAN connector, 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 2 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 1 x Addressable RGB header, 1 x AAFP connector, 2 x Aura RGB Strip Headers, 1 x Intel I225-V 2.5Gb Ethernet, 1 x DisplayPort, 1 x HDMI, 2 x USB 3.2 Gen 2 (1 x Type-A + USB Type-CTM), 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack), 1 x Optical S/PDIF out, 1 x USB BIOS FlashBack Button(s), 5 x Gold-plated audio jacks |
