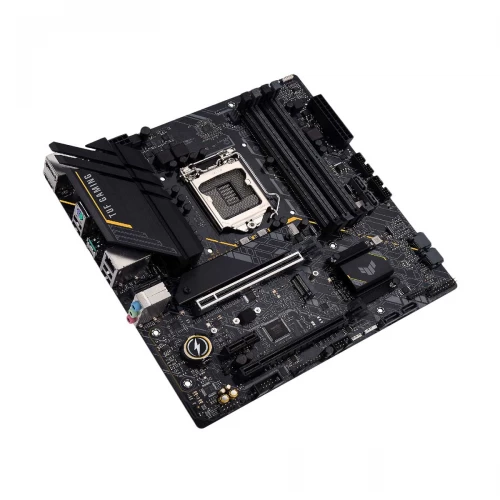

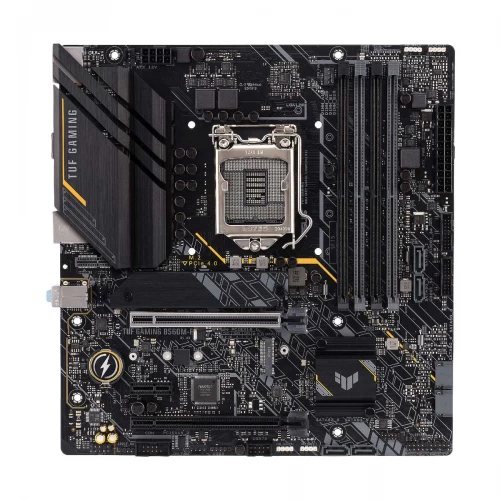

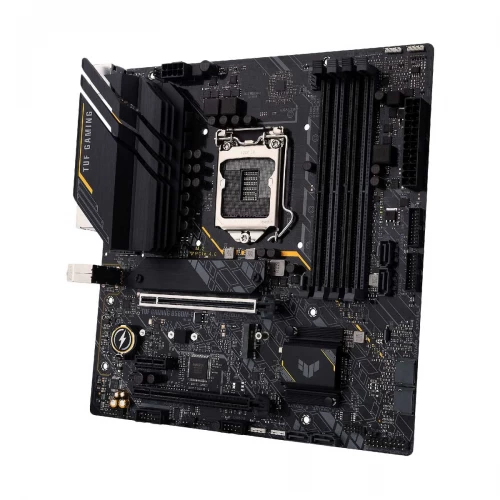

Asus TUF GAMING B560M-E DDR4 10th/11th Gen Motherboard
Model : Asus TUF GAMING B560M-E
Chipset : Intel B560
Memory Slot : 4
Supported CPU : 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Generation : 10th/11th
Features : Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4, Memory overclocking: Support memory overclocking up to 5000 MHz,
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus TUF GAMING B560M-E |
| Chipset Brand | Intel |
| Chipset | Intel B560 |
| Sockets Supported | LGA1200 |
| Supported CPU | 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors |
| Generation | 10th/11th |
| Memory Type | DDR4 |
| Memory MHz | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| PCI Express Slot | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 |
| Audio Chipset. | Realtek ALC897 |
| Audio Channel | 7.1 |
| LAN Speed (Mbps) | 10/100/1000/2500Mb/s |
| WiFi | No |
| USB Port | 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 x USB Type-C, 6 x USB 2.0 Type-A |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 6 |
| COM Port | 1 |
| CrossFire Support | No |
| Sli Support | No |
| RGB Support | Yes |
| RGB Sync | Aura Sync |
| RGB Connector | 2 x AURA RGB headers |
| Form Factor | Micro-ATX |
| BIOS Type | 128 Mb Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| Supported Operating System | Windows 10 |
| Warranty | 3 Years Replacement Warranty |
| Feature | Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4, Memory overclocking: Support memory overclocking up to 5000 MHz, ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking |

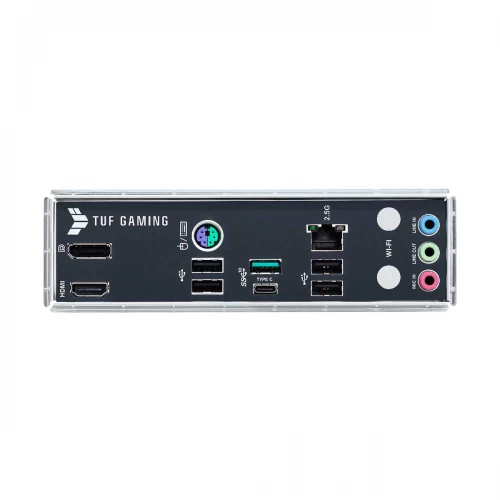

| Others | DisplayPort Version: 1.4, HDMI Version: 1.4 / 2.0, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port, 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s), 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector, 2 x AURA Addressable Gen 2 headers, 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
