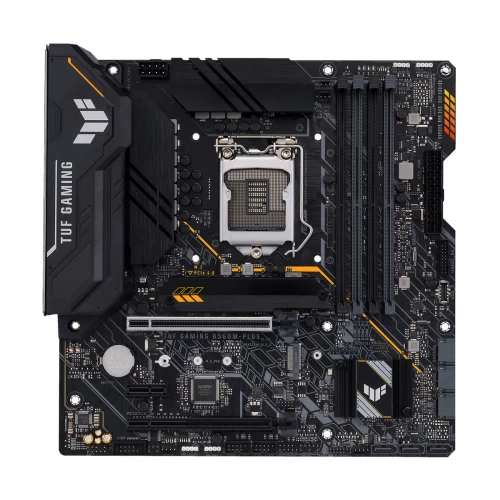

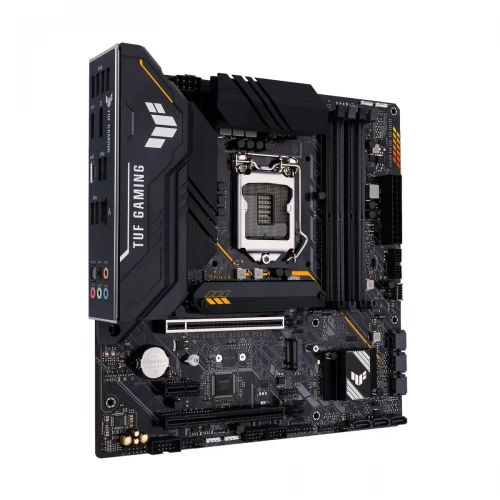

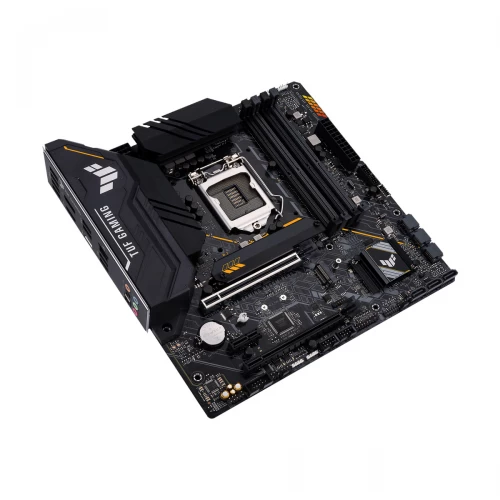

Asus TUF GAMING B560M-PLUS DDR4 Intel Motherboard
Model : Asus TUF GAMING B560M-PLUS
Chipset : Intel B560
Memory Slot : 4
Supported CPU : 11th Gen: Intel Core Processors & 10th Gen: Intel Core, Pentium Gold and Celeron Processors
Generation : 10th/11th
Features : Intel B560 (LGA 1200) mATX motherboard with PCIe 4.0, two M.2 slots, 8+1 Power stages
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus TUF GAMING B560M-PLUS |
| Chipset Brand | Intel |
| Chipset | Intel B560 |
| Sockets Supported | LGA1200 |
| Supported CPU | 11th Gen: Intel Core Processors & 10th Gen: Intel Core, Pentium Gold and Celeron Processors |
| Generation | 10th/11th |
| Memory Type | DDR4 |
| Memory MHz | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| Graphics | Integrated Graphics |
| PCI Express Slot | 1 x PCIe 4.0/3.0 x16, 1 x PCIe 3.0 x16 slot, 1 x PCIe 3.0 x1 |
| Audio Chipset. | Realtek ALC897 |
| Audio Channel | 7.1 |
| LAN Chipset | Realtek GbE LAN |
| LAN Speed (Mbps) | 10/100/1000/2500 Mb/s |
| WiFi | No |
| USB Port | 2 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 1 Type-A, 6 x USB 2.0 Type-A |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 6 |
| Thunderbolt | 1 |
| COM Port | 1 |
| CrossFire Support | No |
| Sli Support | No |
| RGB Support | Yes |
| RGB Sync | Aura Sync |
| RGB Connector | 2 x AURA RGB header |
| Form Factor | Micro-ATX |
| BIOS Type | 128 Mb Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| Supported Operating System | Windows 10 |
| Warranty | 3 Years Replacement Warranty |
| Feature | Intel B560 (LGA 1200) mATX motherboard with PCIe 4.0, two M.2 slots, 8+1 Power stages, Realtek 2.5Gb Ethernet, DisplayPort 1.4, HDMI 2.0, USB 3.2 Gen 2, USB 3.2 Gen 1 Type-C, Thunderbolt 4 support, Aura Sync RGB Lighting, Addressable RGB, Two-way AI Noise-Cancelation: Reduce background noise from the microphone and audio output for crystal-clear communication in games or video conferences, ASUS OptiMem II: Careful routing of traces and vias to preserve signal integrity for improved memory stability |
| Others | 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s), 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector, 1 x Clear CMOS header, 2 x AURA Addressable Gen 2 header, 1 x Front Panel Audio header, 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port, |
