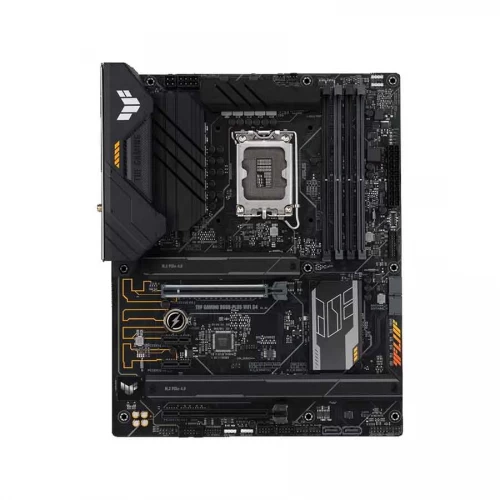

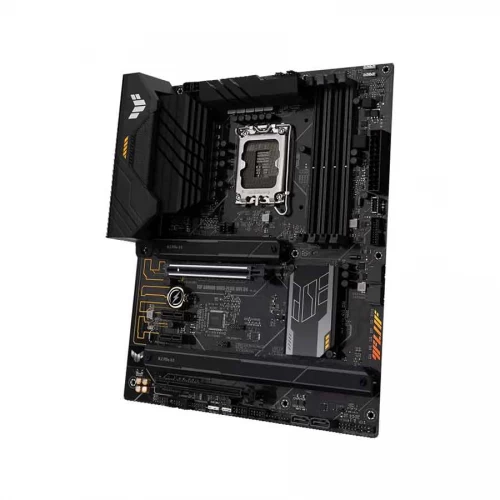

Asus TUF GAMING B660-PLUS D4 (Wi-Fi 6) DDR4 12th/13th Gen Intel Motherboard
Model : Asus TUF GAMING B660-PLUS D4 (Wi-Fi 6)
Chipset : Intel B660
Memory Slot : 4
Supported CPU : Intel Core, Pentium Gold and Celeron Processors
Generation : 12th/13th
Features : ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS), Enhanced DRAM Overcurrent Protection, ESD Guards, TUF LANGuard
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus TUF GAMING B660-PLUS D4 (Wi-Fi 6) |
| Chipset Brand | Intel |
| Chipset | Intel B660 |
| Sockets Supported | LGA1700 |
| Supported CPU | Intel Core, Pentium Gold and Celeron Processors |
| Generation | 12th/13th |
| Memory Type | DDR4 |
| Memory MHz | 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Slot (Additional Info) | 4 x DIMM |
| Memory Max. | 128GB |
| Optane Memory Support | Yes |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 3 |
| PCI Express Slot | 1 x PCIe 5.0/4.0/3.0 x16 slot, 1 x PCIe 3.0 x16 slot, 2 x PCIe 3.0 x1 slots |
| Audio Channel | 7.1 |
| LAN Chipset | Intel 2.5Gb Ethernet |
| WiFi | Yes |
| WiFi Technology | 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2.4/5GHz |
| Bluetooth | Bluetooth 5.2 |
| USB Port | 1 x USB 2.0 USB Type-A, 3 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 -C |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 4 x SATA |
| COM Port | 1 |
| CrossFire Support | No |
| Sli Support | No |
| Raid Support | 0, 1, 5, 10 |
| RGB Support | Yes |
| RGB Sync | AURA Sync |
| RGB Connector | 1 x AURA RGB header |
| Form Factor | ATX |
| BIOS Type | 128 Mb ROM |
| BIOS Model | UEFI AMI BIOS |
| Supported Operating System | Windows 10 / 11 |
| Warranty | 3 Years Replacement Warranty |
| Feature | ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS), Enhanced DRAM Overcurrent Protection, ESD Guards, TUF LANGuard, Overvoltage Protection, Safeslot, Stainless-Steel Back I/O. ASUS Q-Design – M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot. ASUS Thermal Solution – M.2 heatsink, VRM heatsink design. ASUS EZ DIY – CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeDIMM. AURA Sync. |

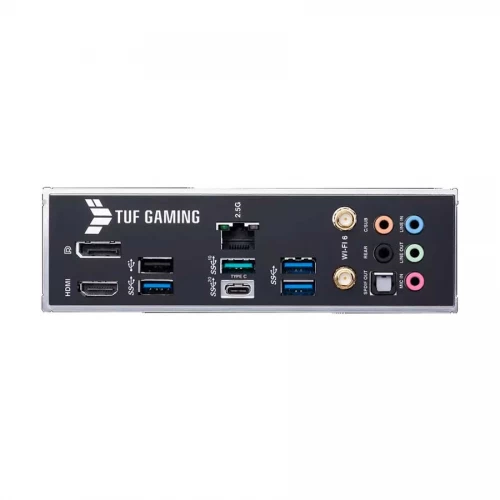

| Others | Back Panel I/O Ports: 1 x Wi-Fi Module, 1 x Intel 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port. Internal I/O Connectors: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan header, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, 1 x USB 3.2 Gen 2 connector, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 header. Miscellaneous – 3 x Addressable Gen 2 header(s), 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thunderbolt. Manageability: WOL by PME, PXE. |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
