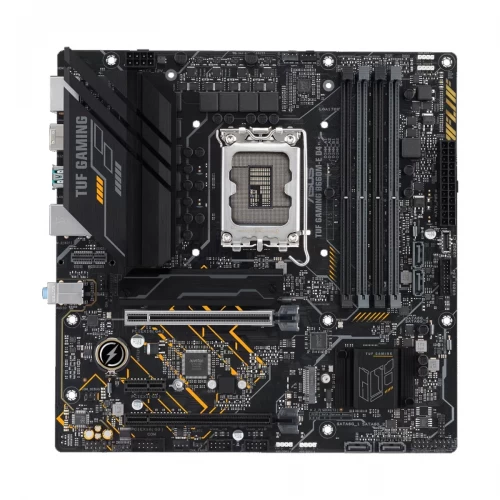

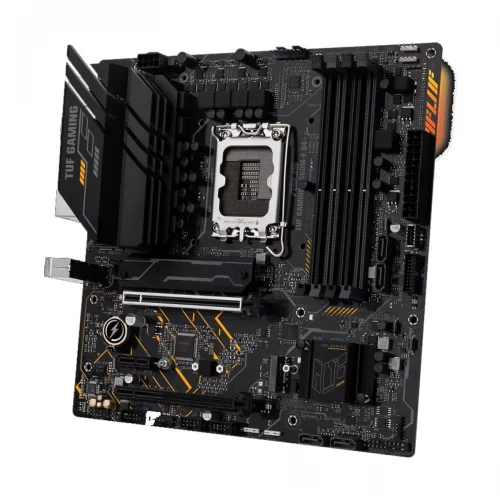

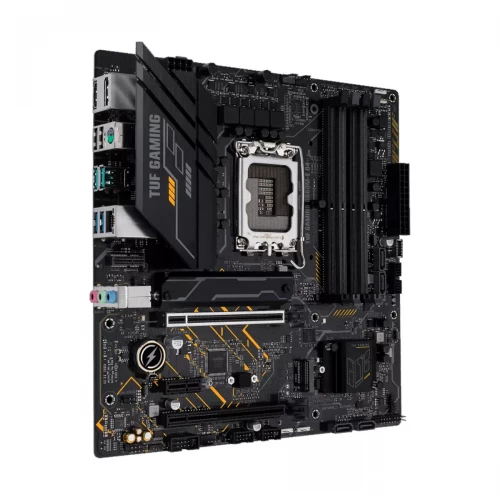

Asus TUF GAMING B660M-E D4 DDR4 12th/13th Gen Intel Motherboard
Model : Asus TUF GAMING B660M-E D4
Chipset : Intel B660
Memory Slot : 4
Supported CPU : Intel Core, Pentium, Gold and Celeron Processors
Generation : 12th/13th
Features : ASUS TUF PROTECTION, DIGI+ VRM, Enhanced DRAM Overcurrent Protection, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O, ASUS Q-Design, M.2 Q-Latch, Q-DIMM, Q-Slot
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus TUF GAMING B660M-E D4 |
| Chipset Brand | Intel |
| Chipset | Intel B660 |
| Sockets Supported | LGA1700 |
| Supported CPU | Intel Core, Pentium, Gold and Celeron Processors |
| Generation | 12th/13th |
| Memory Type | DDR4 |
| Memory MHz | 5333(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400 (OC)/ 3333(OC) /3200 /3000 / 2933/2800/ 2666/2400/ 2133 MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| PCI Express Slot | 1 x PCIe 4.0/3.0 x16 slot, 1 x PCIe 3.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x1 slot |
| Audio Chipset. | Realtek ALC897 |
| Audio Channel | 7.1 |
| LAN Chipset | 1 x Realtek 2.5Gb Ethernet port |
| WiFi | No |
| USB Port | 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1 Type-A, 2 x USB 3.2 Gen 1 Type-A, |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 4 x SATA |
| COM Port | Yes |
| CrossFire Support | No |
| Sli Support | No |
| RGB Support | Yes |
| RGB Connector | 1 x AURA RGB header |
| Form Factor | Micro-ATX |
| BIOS Type | 128 Mb Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| Supported Operating System | Windows 11 and 10 |
| Warranty | 3 Years Replacement Warranty |
| Feature | ASUS TUF PROTECTION, DIGI+ VRM, Enhanced DRAM Overcurrent Protection, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O, ASUS Q-Design, M.2 Q-Latch, Q-DIMM, Q-Slot, ASUS Thermal Solution, Flexible M.2 heatsink, VRM heatsink design, ASUS EZ DIY, Box Headers, ProCool, SafeDIMM, AURA Sync, AURA RGB header, Addressable Gen 2 headers, ASUS Exclusive Software. Comprehensive cooling: Enlarged VRM heatsink, Flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+. Latest connectivity: PCIe 4.0 slot, PCIe 4.0 M.2 slots, front USB 3.2 Gen 2 Type-C. Made for online gaming: Realtek 2.5Gb Ethernet, TUF LANGuard. Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences. Durable. Stable. Reliable. |
| Others | Back Panel I/O Ports: 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port, Manageability: WOL by PME, PXE |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
