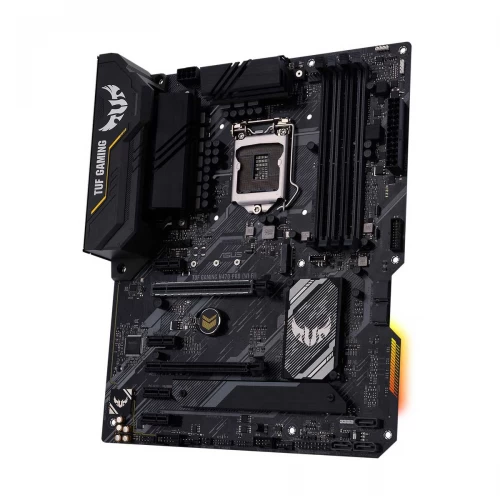

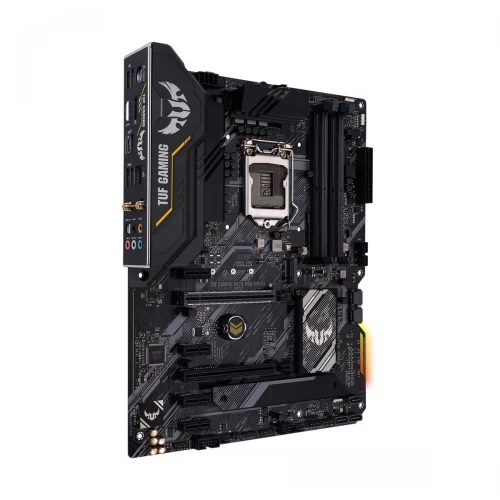

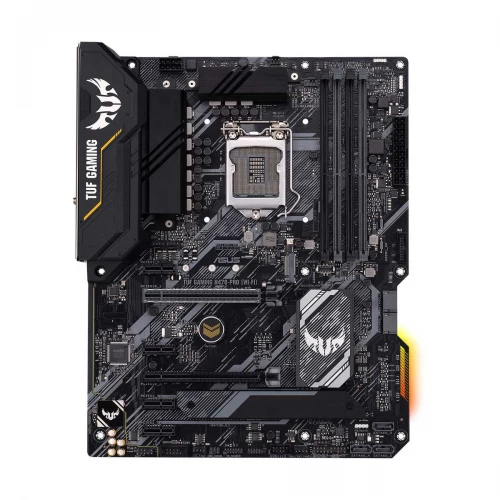

Asus TUF GAMING H470-PRO (Wi-Fi 6) DDR4 10th Gen Intel Motherboard
Model : Asus TUF GAMING H470-PRO
Chipset : Intel H470
Memory Slot : 4
Supported CPU : Intel Core, Pentium Gold and Celeron Processors
Generation : 10th
Features : Intel H470 (LGA 1200) ATX gaming motherboard Aura Sync RGB lighting Intel LGA 1200 socket
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus TUF GAMING H470-PRO |
| Chipset | Intel H470 |
| Sockets Supported | LGA1200 |
| Supported CPU | Intel Core, Pentium Gold and Celeron Processors |
| Generation | 10th |
| Memory Type | DDR4 |
| Memory MHz | 2933/ 2800/ 2666/ 2400/ 2133 MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Optane Memory Support | Yes |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| Graphics | Integrated Graphics |
| Multi-GPU Support | AMD 2-Way CrossFireX Technology |
| PCI Express Slot | 1 x PCIe 3.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x4 mode), 4 x PCIe x1 |
| Audio Chipset. | Realtek ALC S1200A |
| Audio Channel | 7.1 |
| LAN Chipset | Intel I219-V 1Gb Ethernet |
| LAN Speed (Mbps) | 10/ 100/ 1000Mbps |
| WiFi | Yes |
| WiFi Technology | Intel Wi-Fi 6 AX201 (802.11 a, b, g, n, ac, ax) |
| USB Port | 2 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 5 |
| COM Port | 1 |
| Raid Support | 0, 1, 5, 10 |
| RGB Support | Yes |
| RGB Sync | Aura sync |
| RGB Connector | 2 x Aura RGB Strip Headers |
| Form Factor | ATX |
| BIOS Type | 192 (128+64) Mbit Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| Supported Operating System | Windows 10 |
| Warranty | 3 Years Replacement Warranty |
| Feature | Intel H470 (LGA 1200) ATX gaming motherboard Aura Sync RGB lighting Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors Enhanced power solution: 10 power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability, Comprehensive cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and FAN Xpert 4 utility, Made for online gaming: Intel WiFi 6, Intel Ethernet Connection I219-V, TUF LANGuard and TurboLAN technology, Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in, Aura Sync RGB: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips |

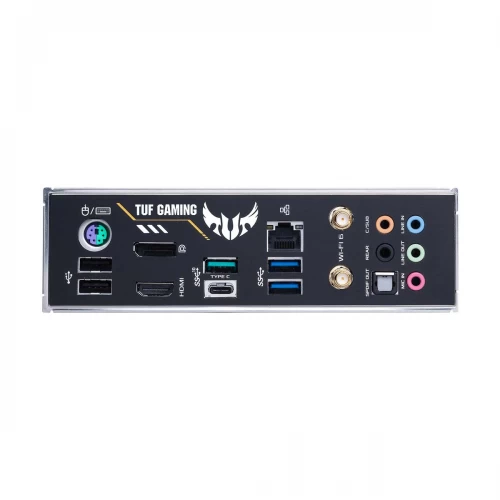

| Others | Intel 14 nm CPU, DisplayPort version: 1.4, HDMI version: 1.4b, 1 x PS/2 keyboard/mouse combo port, 1 x LAN (RJ45) port, 1 x Optical S/PDIF out, 5 x Audio jack, 1 x CPU Fan connector, 1 x CPU OPT Fan connector, 3 x Chassis Fan connector, 1 x AIO_PUMP connector, 1 x Addressable Gen 2 header, 1 x Thunderbolt header, 1 x 24-pin EATX Power connector, 1 x 8-pin ATX 12V Power connector, 1 x Front panel audio connector, 1 x System panel, 1 x Clear CMOS jumper |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
