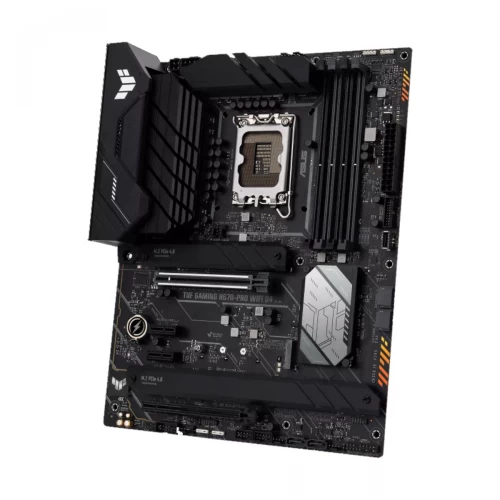

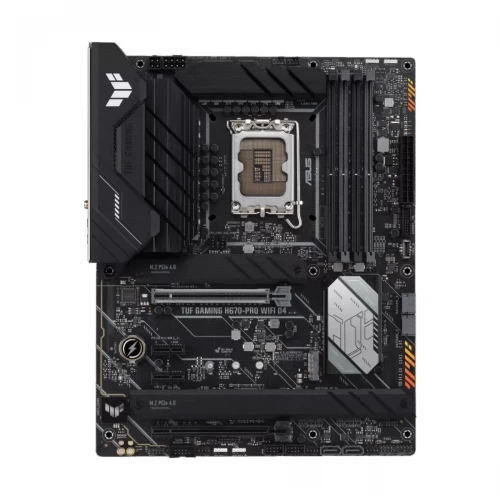

Asus TUF GAMING H670-PRO D4 (Wi-Fi 6) DDR4 12th/13th Gen Intel Motherboard
Model : Asus TUF GAMING H670-PRO D4 (Wi-Fi 6)
Chipset : Intel H670
Memory Slot : 4
Supported CPU : Intel Core, Pentium, Gold and Celeron Processors
Generation : 12th/13th
Features : ASUS TUF GAMING H670-PRO WIFI D4 takes all the essential elements of the latest Intel processors
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus TUF GAMING H670-PRO D4 (Wi-Fi 6) |
| Chipset Brand | Intel |
| Chipset | Intel H670 |
| Sockets Supported | LGA1700 |
| Supported CPU | Intel Core, Pentium, Gold and Celeron Processors |
| Generation | 12th/13th |
| Memory Type | DDR4 |
| Memory MHz | 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC) /3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Optane Memory Support | Yes |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 4 |
| PCI Express Slot | 1 x PCIe 5.0 x16 slot, 1 x PCIe 3.0 x16 slot (supports x4 mode), 2 x PCIe 3.0 x1 slots |
| Audio Chipset. | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio Channel | 7.1 |
| LAN Chipset | 1 x Intel 2.5Gb Ethernet port |
| WiFi | Yes |
| WiFi Technology | 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
| Bluetooth | Bluetooth 5.2 |
| USB Port | 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 4 x SATA |
| TPM Port | No |
| COM Port | Yes |
| CrossFire Support | No |
| Sli Support | No |
| Raid Support | 0, 1, 5, 10 |
| RGB Support | Yes |
| RGB Sync | AURA Sync |
| RGB Connector | 1 x AURA RGB header |
| Form Factor | ATX |
| BIOS Type | 192 (128+64) Mb Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| Warranty | 3 Years Replacement Warranty |
| Feature | ASUS TUF GAMING H670-PRO WIFI D4 takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, TUF GAMING H670-PRO WIFI D4 sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series. |

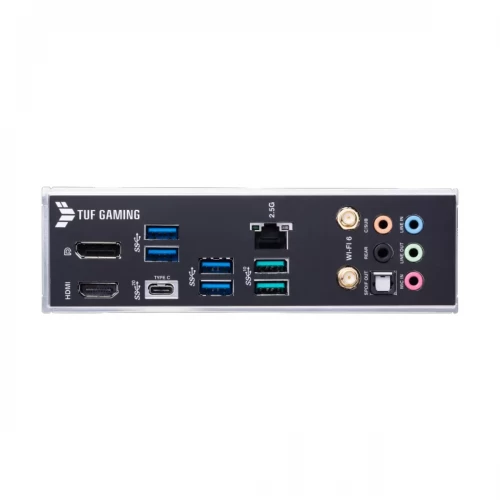

| Others | Back Panel I/O Ports: 5 x Audio jacks, 1 x Optical S/PDIF out port |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
