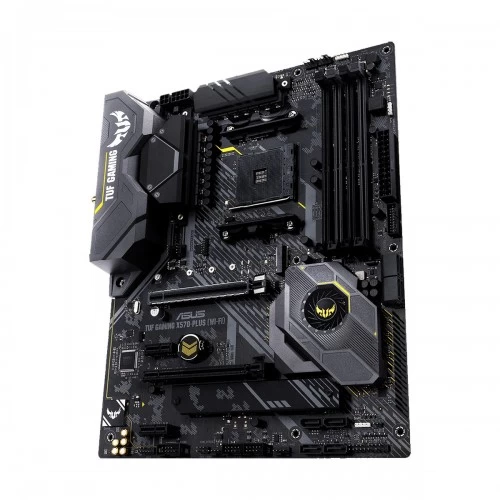

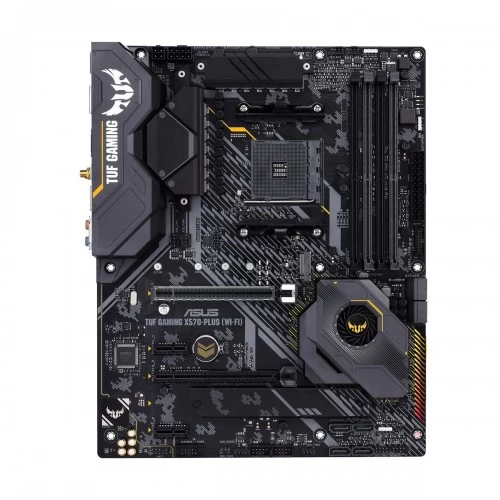

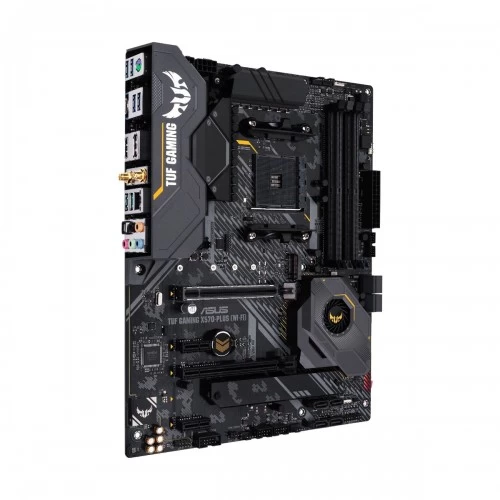

Asus TUF GAMING X570-PLU S Wi-Fi 6 DDR4 AMD Motherboard
Model : Asus TUF GAMING X570-PLUS WI-FI
Chipset : AMD X570
Memory Slot : 4
Supported CPU : AMD Ryzen 5000 Series/ AMD Ryzen 4000 G-Series/ AMD Ryzen 3000 Series/ AMD Ryzen 2000 Series/ AMD Ryzen 3000 G-Series/ AMD Ryzen 2000 G-Series Processors
Features : ATX gaming motherboard with PCIe 4.0, dual M.2, Wi-Fi, 14 Dr. MOS power stages, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB lighting, Enhanced Power Solution, 12+2 Dr. MOS power stages
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus TUF GAMING X570-PLUS WI-FI |
| Chipset Brand | AMD |
| Chipset | AMD X570 |
| Sockets Supported | AM4 |
| Supported CPU | AMD Ryzen 5000 Series/ AMD Ryzen 4000 G-Series/ AMD Ryzen 3000 Series/ AMD Ryzen 2000 Series/ AMD Ryzen 3000 G-Series/ AMD Ryzen 2000 G-Series Processors |
| Memory Type | DDR4 |
| Memory MHz | 4400(O.C)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| Graphics | Integrated Graphics |
| Multi-GPU Support | AMD CrossFireX |
| PCI Express Slot | 3rd Gen AMD Ryzen: 1 x PCIe 4.0 x16 (x16 mode), 2nd Gen AMD Ryzen: 1 x PCIe 3.0 x16 (x16 mode), 2nd and 1st Gen AMD Ryzen: 1 x PCIe 3.0/2.0 x16 (x8 mode), AMD X570: 1 x PCIe 4.0 x16 (max at x4 mode), 2 x PCIe 4.0 x1 |
| Audio Chipset. | Realtek ALC S1200A |
| Audio Channel | 8 |
| LAN Chipset | Realtek L8200A |
| LAN Speed (Mbps) | 10/100/1000Mbps |
| WiFi | Yes |
| WiFi Technology | Intel Wireless-AC 9260, Wi-Fi 802.11 a/b/g/n/ac, Supports dual band frequency 2.4/5 GHz, Supports MU-MIMO, Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed |
| Bluetooth | Bluetooth 5 |

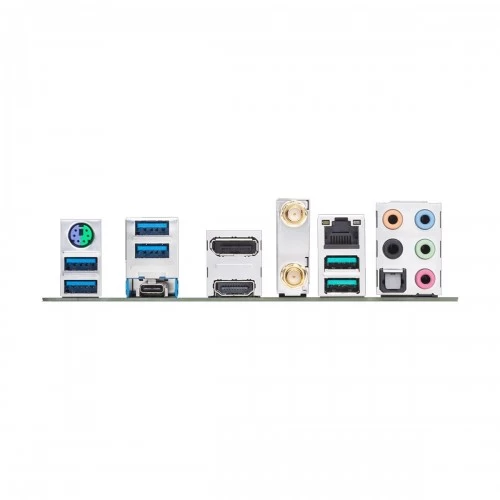

| USB Port | 3 x USB3.2 Gen 2 (Type-A + USB Type-C), 6 x USB3.2 Gen 1, 4 x USB2.0 |
| HDMI Port | 1 |
| SATA Port | 8 x SATA |
| TPM Port | Yes |
| COM Port | Yes |
| CrossFire Support | Yes |
| Raid Support | 0, 1, 10 |
| RGB Support | Yes |
| RGB Sync | Aura Sync |
| RGB Connector | 2 x Aura RGB Strip Header |
| Form Factor | ATX |
| BIOS Type | 1 x 256 Mbit Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| BIOS Version | PnP, SM BIOS 3.2, ACPI 6.2 |
| Supported Operating System | Windows 10 |
| Warranty | 3 Years Replacement Warranty |
| Feature | ATX gaming motherboard with PCIe 4.0, dual M.2, Wi-Fi, 14 Dr. MOS power stages, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB lighting, Enhanced Power Solution, 12+2 Dr. MOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability, Comprehensive Cooling, Active chipset heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4, Gaming Networking, Exclusive Realtek L8200A Gigabit Ethernet, Intel 2×2 802.11ac Wi-Fi with MU-MIMO support, Bluetooth 5.0, TUF LANGuard and TurboLAN technology, Realtek S1200A Codec, Pristine audio quality with unprecedented 108dB signal-to-noise ratio for stereo line-out and 103dB SNR for line-in, Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips, TUF Gaming Alliance, ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case |
| Others | 2 x M.2 Socket 3, 1 x DisplayPort, 2 x Aura RGB Strip Header(s), 1 x Addressable Gen 2 header(s), 1 x SPI TPM header, 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 3 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 1 x System panel(s), 1 x Clear CMOS jumper(s), 1 x COM port header, 5 x Audio jack(s), ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0), Wireless Data Network: Intel Wireless-AC 9260, Wi-Fi 802.11 a/b/g/n/ac, Supports dual band frequency 2.4/5 GHz, Supports MU-MIMO, Supports channel bandwidth: HT20/HT40/HT80/HT160, Bluetooth: Bluetooth 5.0 |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
