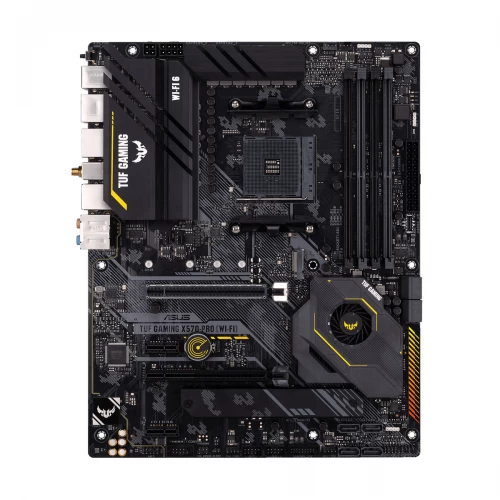

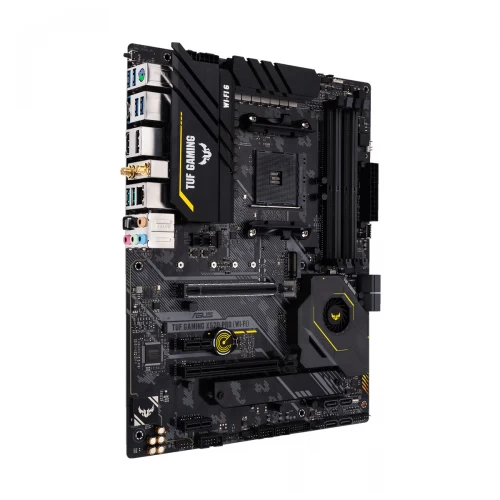

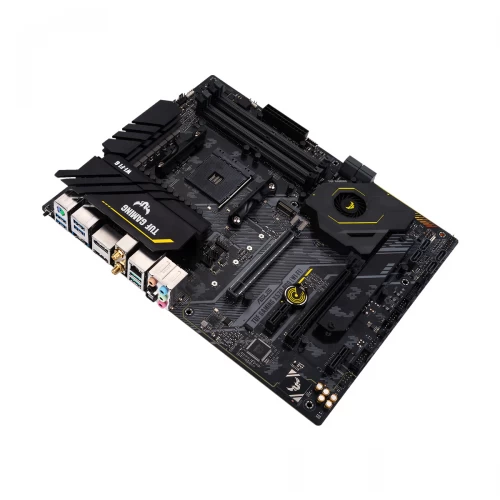

Asus TUF GAMING X570-PRO (Wi-Fi 6) DDR4 AMD Motherboard
Model : Asus TUF GAMING X570-PRO (Wi-Fi 6)
Chipset : AMD X570
Memory Slot : 4
Supported CPU : AMD AM4 Socket 3rd and 2nd Gen AMD Ryzen/3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors
Features : AMD AM4 X570 ATX gaming motherboard with PCIe 4.0, dual M.2, 2.5G Intel LAN, Wi-Fi 6
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus TUF GAMING X570-PRO (Wi-Fi 6) |
| Chipset Brand | AMD |
| Chipset | AMD X570 |
| Sockets Supported | AM4 |
| Supported CPU | AMD AM4 Socket 3rd and 2nd Gen AMD Ryzen/3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors |
| Memory Type | DDR4 |
| Memory MHz | 5100(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| Graphics | Integrated Graphics |
| Multi-GPU Support | AMD 2-Way CrossFireX Technology |
| PCI Express Slot | 1 x PCIe 4.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x16 mode), 1 x PCIe 3.0/2.0 x16 (x8 mode), 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 4.0 x1 |
| Audio Chipset. | Realtek ALC S1200A |
| Audio Channel | 8 |
| LAN Chipset | Intel I225-V |
| LAN Speed (Mbps) | 10/100/1000/2500 Mb/s |
| WiFi | Yes |

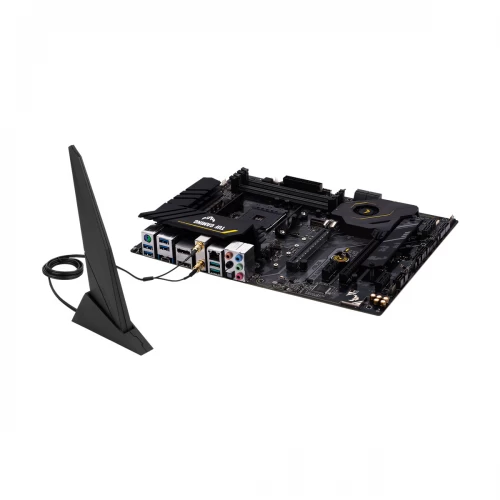

| WiFi Technology | Wi-Fi 6 802.11 a, b, g, n, ac, ax (2×2) |
| Bluetooth | Bluetooth 5.1 |

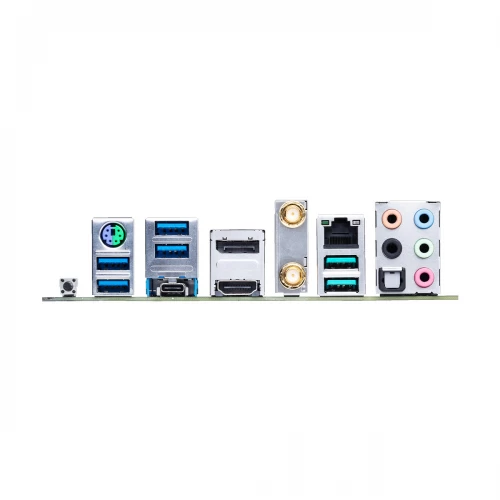

| USB Port | 3 x USB 3.2 Gen 2 Type-A, 6 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.1 Gen 1 Type-A, 4 x USB 2.0 Type-A |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 8 |
| TPM Port | 1 |
| COM Port | 1 |
| CrossFire Support | No |
| Sli Support | No |
| Raid Support | 0, 1, 10 |
| RGB Support | Yes |
| RGB Sync | Aura Sync |
| RGB Connector | 2 x Aura RGB Strip Header |
| Form Factor | ATX |
| BIOS Type | 256Mb Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| BIOS Version | PnP, SM BIOS 3.2, ACPI 6.2 |
| Supported Operating System | Windows 10 |
| Warranty | 3 Years Replacement Warranty |
| Feature | AMD AM4 X570 ATX gaming motherboard with PCIe 4.0, dual M.2, 2.5G Intel LAN, Wi-Fi 6, 14 Dr. MOS power stages, USB 3.2 Gen 2 Type-C ports and Aura Sync RGB lighting, Comprehensive Cooling: Active chipset heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4, TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case |
| Others | Wireless Data Network: Intel Wi-Fi 6 AX200, High Definition Audio CODEC, 1 x LAN (RJ45) port, 1 x Optical S/PDIF out, 5 x Audio jack, 1 x BIOS FlashBack Button, 1 x ASUS Wi-Fi Module, 1 x CPU Fan connector, 1 x CPU OPT Fan connector, 3 x Chassis Fan connector, 1 x AIO PUMP connector, 1 x Addressable Gen 2 header, 1 x 24-pin EATX Power connector, 1 x 8-pin ATX 12V Power connector, 1 x 4-pin ATX 12V Power connector, 1 x Front panel audio connector, 1 x System panel, 1 x Clear CMOS jumper. |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
