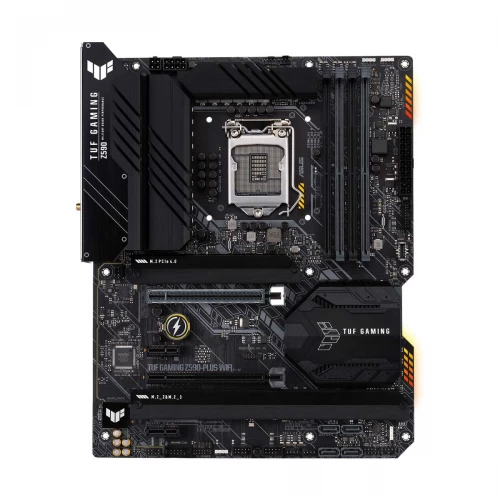

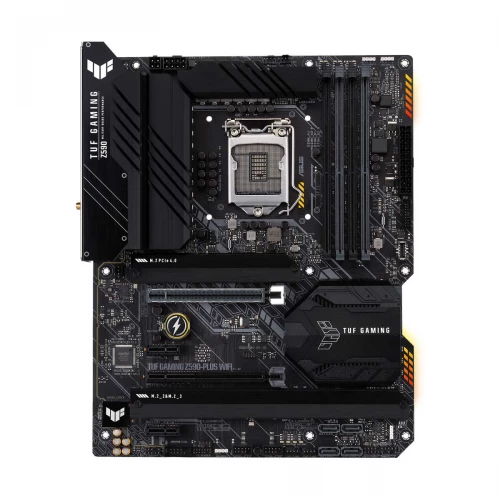

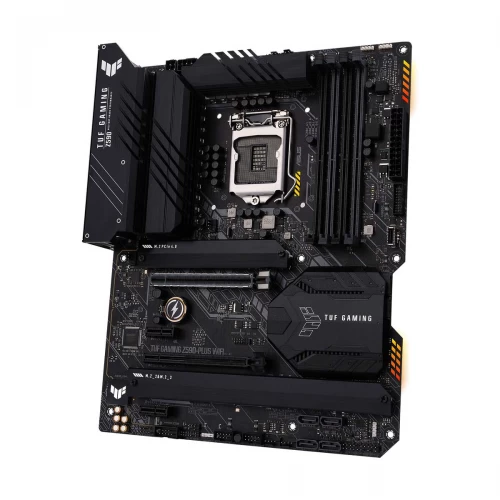

Asus TUF GAMING Z590-PLUS Wi-Fi 6 10th/11th Gen Intel Motherboard
Model : Asus TUF GAMING Z590-PLUS
Chipset : Intel Z590
Memory Slot : 4
Supported CPU : Intel Core, Pentium Gold and Celeron Processors
Generation : 10th/11th
Features : Intel Z590 (LGA 1200) ATX gaming motherboard with 16 DrMOS power stages, PCIe 4.0, three M.2 slots, Intel WiFi 6 and 2.5 Gb Ethernet, HDMI, DisplayPort, USB 3.2 Gen 2×2 Type-C, SATA 6 Gbps, front panel USB 3.2 Gen 1 Type C
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus TUF GAMING Z590-PLUS |
| Chipset Brand | Intel |
| Chipset | Intel Z590 |
| Sockets Supported | LGA1200 |
| Supported CPU | Intel Core, Pentium Gold and Celeron Processors |
| Generation | 10th/11th |
| Memory Type | DDR4 |
| Memory MHz | 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 3 |
| PCI Express Slot | 1 x PCIe 4.0/3.0 x16 slot, 2 x PCIe 3.0 x1 slots |
| Audio Chipset. | Realtek ALC S1200A |
| Audio Channel | 7.1 |
| LAN Chipset | Intel I225-V 2.5Gb Ethernet |
| LAN Speed (Mbps) | 10/100 Mbps |
| WiFi | Yes |
| WiFi Technology | Wi-Fi 6 2×2 (802.11 a, b, g, n, ac, ax) |
| Bluetooth | Bluetooth 5.0 |

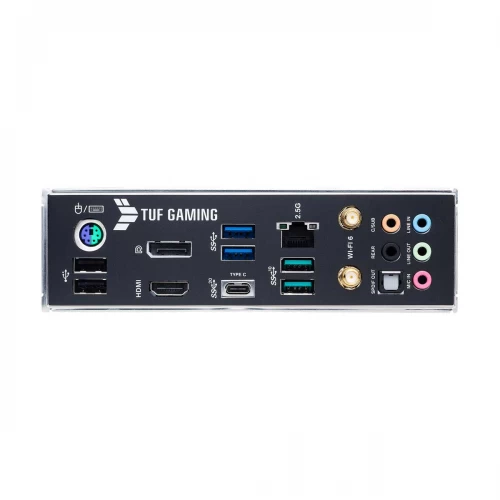

| USB Port | 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 6 |
| Thunderbolt | 1 |
| COM Port | 1 |
| CrossFire Support | No |
| Sli Support | No |
| RGB Support | Yes |
| RGB Sync | Aura sync |
| RGB Connector | 2 x AURA RGB headers |
| Form Factor | ATX |
| BIOS Type | 192 (128+64) Mb Flash |
| BIOS Model | UEFI AMI BIOS |
| Supported Operating System | Windows 10 |
| Warranty | 3 Years Replacement Warranty |
| Feature | Intel Z590 (LGA 1200) ATX gaming motherboard with 16 DrMOS power stages, PCIe 4.0, three M.2 slots, Intel WiFi 6 and 2.5 Gb Ethernet, HDMI, DisplayPort, USB 3.2 Gen 2×2 Type-C, SATA 6 Gbps, front panel USB 3.2 Gen 1 Type C, Thunderbolt 4 support and Aura Sync RGB lighting, Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Core processors, Enhanced power solution: 14+2 DrMOS power stages, six-layer PCB, ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability, Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility, Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences, Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in |
| Others | 5 x Audio jacks, 1 x Optical S/PDIF out port, 1 x PS/2 Keyboard/Mouse combo port, 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, 1 x Clear CMOS header |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
