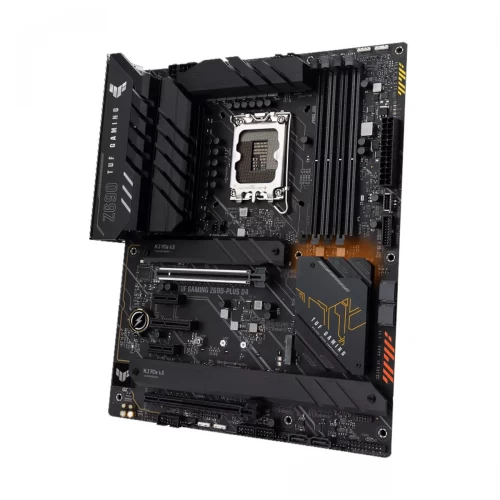

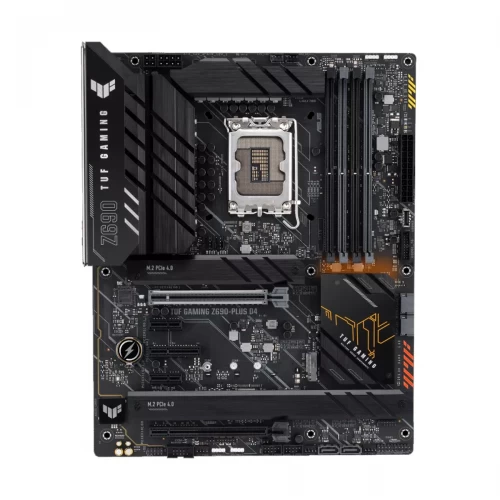

Asus TUF GAMING Z690-PLUS D4 DDR4 12th/13th Gen Intel Motherboard
Model : Asus TUF GAMING Z690-PLUS D4
Chipset : Intel Z690
Memory Slot : 4
Supported CPU : 12th/13th Gen Intel Core Processors & Pentium Gold and Celeron Processors
Generation : 12th/13th
Features : ASUS Exclusive Software (Armoury Crate, AI Suite 3, MyAsus, WinRAR),
Warranty : 3 year
Additional information
| Brand | Asus |
|---|---|
| Model | Asus TUF GAMING Z690-PLUS D4 |
| Chipset Brand | Intel |
| Chipset | Intel Z690 |
| Sockets Supported | LGA1700 |
| Supported CPU | 12th/13th Gen Intel Core Processors & Pentium Gold and Celeron Processors |
| Generation | 12th/13th |
| Memory Type | DDR4 |
| Memory MHz | 5333(OC) /5133(OC) /5000(OC) /4800(OC) /4600(OC) /4400(OC) /4266(OC) /4133(OC) /4000(OC) /3866(OC) /3733(OC) /3600(OC) /3466(OC) /3400(OC) /3333(OC) /3200 /3000 /2933 /2800 /2666 /2400 /2133Mhz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 4 |
| PCI Express Slot | 1 x PCIe 5.0 x16 slot, 1 x PCIe 3.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x4 slot, 2 x PCIe 3.0 x1 slots |
| Audio Chipset. | Realtek High Definition Audio CODEC |
| Audio Channel | 7.1 |
| LAN Chipset | Intel 2.5Gb Ethernet |
| LAN Speed (Mbps) | 10/100/1000/2500Mbps |
| WiFi | No |

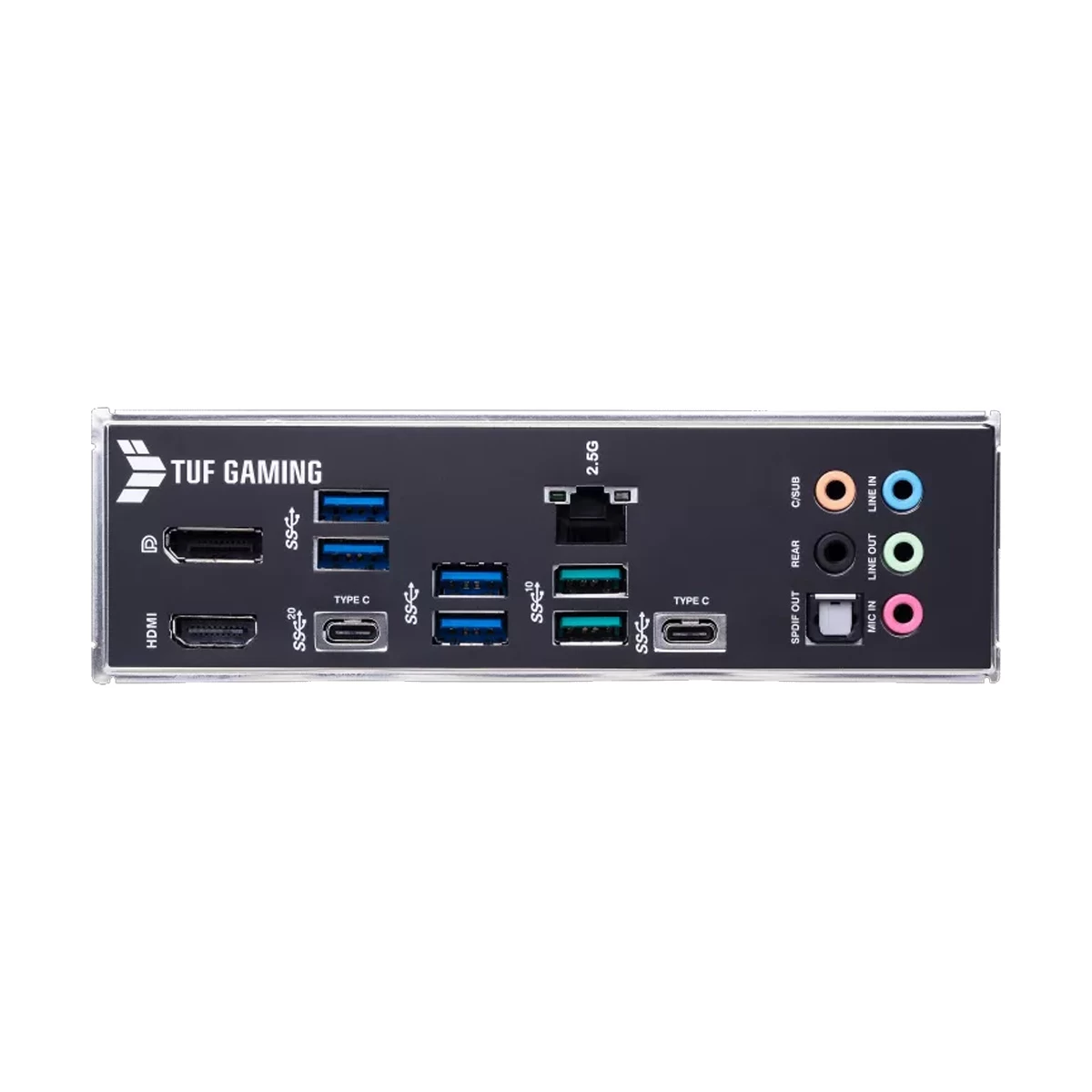

| USB Port | 1 x USB 3.2 Gen 2×2 Type-C, 2 x USB 3.2 Gen 2 ports Type-A, 4 x USB 3.2 Gen 1 USB Type-A,1 x USB 3.2 Gen 1 Type-C |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 4 |
| CrossFire Support | No |
| Sli Support | No |
| RGB Support | Yes |
| RGB Sync | Aura Sync |
| RGB Connector | 1 x AURA RGB header |
| Form Factor | ATX |
| BIOS Type | 192 (128+64) Mb Flash |
| BIOS Model | UEFI AMI BIOS |
| Supported Operating System | Windows 10/11 |
| Warranty | 3 year |
| Feature | ASUS Exclusive Software (Armoury Crate, AI Suite 3, MyAsus, WinRAR), Audio Features (Audio Shielding, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers, Audio Cover) |
| Others | Manageability: WOL by PME, PXE, Internal I/O Connectors: (1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, 1 x AURA RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thunderbolt header) |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
