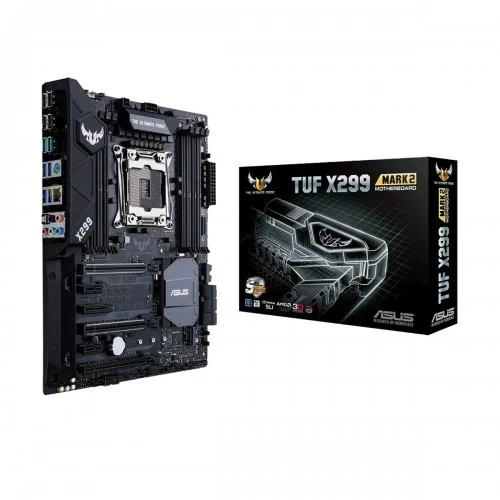

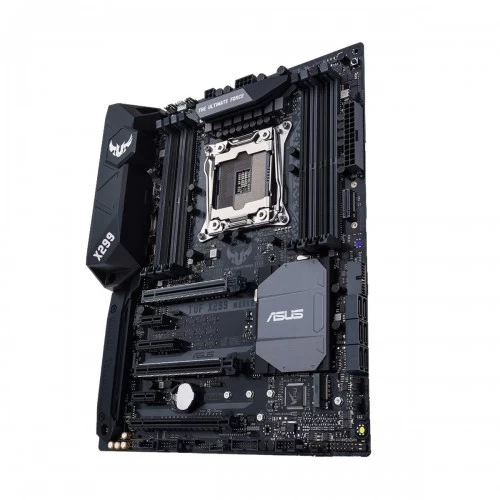

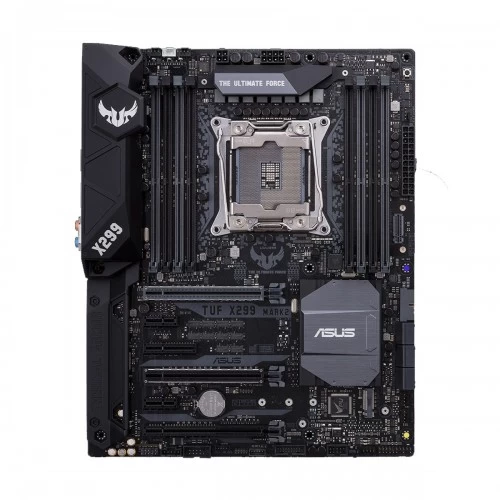

Asus TUF X299 MARK 2 DDR4 Intel Motherboard
Model : Asus TUF X299 MARK 2
Chipset : Intel X299
Memory Slot : 8
Supported CPU : X-Series Processors
Features : OC Design – ASUS PRO Clock Technology, TUF ENGINE Power Design, Ultimate COOL Thermal Solution
Warranty : 3 year
Additional information
| Brand | Asus |
|---|---|
| Model | Asus TUF X299 MARK 2 |
| Chipset Brand | Intel |
| Chipset | Intel X299 |
| Sockets Supported | LGA2066 |
| Supported CPU | X-Series Processors |
| Memory Type | DDR4 |
| Memory MHz | i9 10000 X-Series (4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/2400/ 2133MHz), i9 9000/7000 and i7 9000 X-Series (4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHz), X-series (4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 2666/ 2400/ 2133MHz) |
| Memory Slot | 8 |
| Memory Slot (Additional Info) | Core X-series Processors (6-core above): 8, Core X-series Processors (4-core): 4 |
| Memory Max. | 256GB |
| Memory Max. (Additional Info) | Core X-series Processors (6-core above): 256GB, Core X-series Processors (4-core): 128GB |
| Optane Memory Support | Yes |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| Multi-GPU Support | NVIDIA Quad-GPU SLI and NVIDIA 2-Way/3-Way SLI, AMD Quad-GPU CrossFireX and AMD 3-Way CrossFireX |
| PCI Express Slot | 3 x PCIe 3.0/2.0 x16, 1 x PCIe 3.0 x4, 2 x PCIe 3.0/2.0 x1 |
| Audio Chipset. | Realtek ALC S1220A |
| Audio Channel | 8 |
| LAN Chipset | Intel I219V |
| LAN Speed (Mbps) | 10/100/1000Mbps |
| WiFi | No |
| USB Port | 2 x USB3.1 Gen 2 Type-A, 4 x USB3.1 Gen 1, 4 x USB2.0 |
| SATA Port | 6 x SATA |
| Thunderbolt | 1 |
| COM Port | Yes |
| FireWire | No |
| CrossFire Support | Yes |
| Sli Support | Yes |
| Raid Support | 0, 1, 5, 10 |
| RGB Support | No |
| Form Factor | ATX |
| BIOS Type | 1 x 128 Mbit Flash ROM |
| BIOS Model | UEFI AMI BIOS |
| BIOS Version | PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0 |
| Supported Operating System | Windows 10 |
| Warranty | 3 Years Replacement Warranty |
| Feature | OC Design – ASUS PRO Clock Technology, TUF ENGINE Power Design, Ultimate COOL Thermal Solution, Safe & Stable Guardian Angel, AURA, ASUS EZ DIY, ASUS Q-Design |
| Others | 2 x M.2 Socket 3, 5 x Audio jacks, 1 x AAFP connector, 1 x COM, 1 x Clear CMOS jumpers, 2 x 3D Mount screw ports, 1 x SLI HB BRIDGE(2-WAY-M) |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
