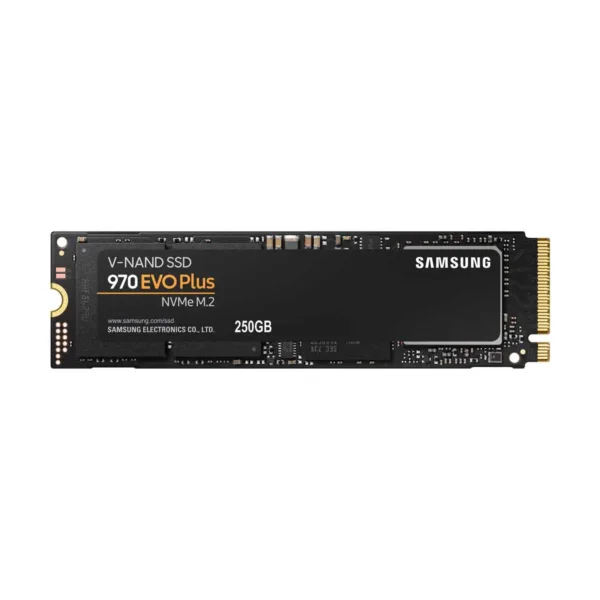

Samsung 970 EVO Plus 250GB M.2 2280 SSD Drive
Model : Samsung 970 EVO Plus
Storage Capacity : 250GB
Type : Internal SSD
Interface : NVMe 1.3 PCI-Express 3.0 x 4
Read Speed :3500MB/s
Form Factor : 2.5 Inch
Write Speed :2300MB/s
Warranty :3 Year
Additional information
| Brand | Samsung |
|---|---|
| Model | Samsung 970 EVO Plus |
| Type | Internal SSD |
| Storage | 250GB |
| Interface(s) | NVMe 1.3 PCI-Express 3.0 x 4 |
| Flash Type | V-NAND flash |
| Read Speed (Max.) | 3500MB/s |
| Write Speed (Max.) | 2300MB/s |
| Random Read IOPS | 250000 IOPS (4KB, QD32), 17000 IOPS (4KB, QD1) |
| Random Write IOPS | 550000 IOPS (4KB, QD32), 60,000 IOPS (4KB, QD1) |
| Shock Resistance | 1500G/0.5ms |
| AES Encryption | 256-bit |
| TRIM Support | Yes |
| S.M.A.R.T Support | Yes |
| MTBF | 1.5 Million Hours |
| Power Consumption | 5.0 W (System level), 30 mW (Idle), 5 mW (Sleep mode) |
| Form Factor (Inch) | M.2 2280 |
| Dimensions | 80.15 x 22.15 x 2.38mm |
| Weight | 8 gm |
| Warranty | 3 year |
| Others | DRAM: 512MB Samsung LPDDR4, Operating Temperature: 0 degree C – 70 degree C, Allowable Voltage: 3.3 V +- 5 %, TCG/Opal, IEEE1667 |
| Specialty | The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for unbeatable computing. The latest V-NAND – which brings greater NAND performance and higher power efficiency – along with optimized firmware, a proven Phoenix controller, and Intelligent TurboWrite boost. Achieve a new level of drive confidence. Samsung advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops. |
| Country Of Origin | South Korea |
| Made in/ Assemble | China / Thailand (or Country may vary by Shipment) |
