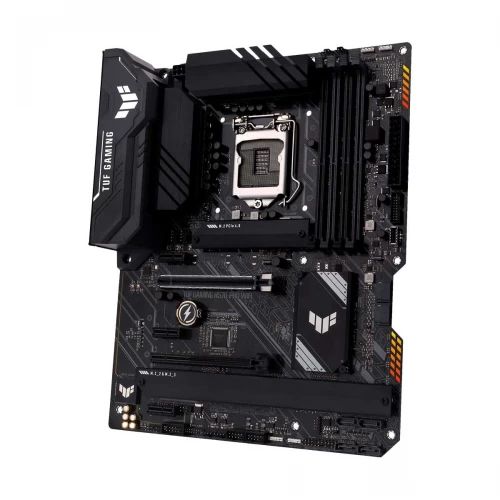

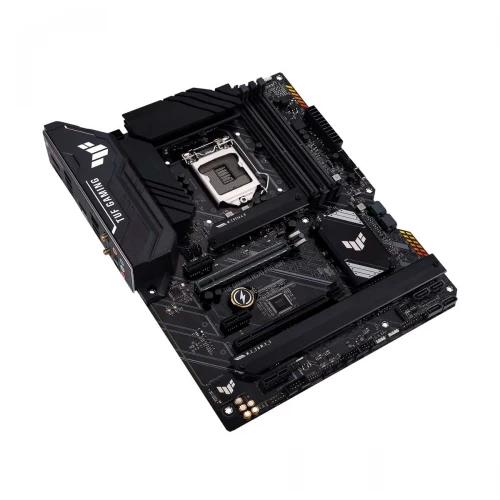

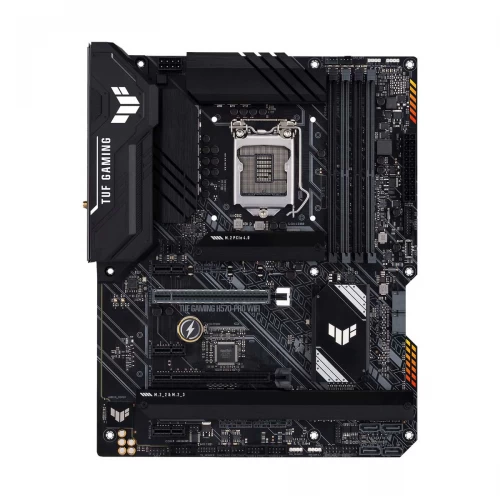

Asus TUF GAMING H570-PRO Wi-Fi 6 DDR4 10th/11th Gen Motherboard
Model : Asus TUF GAMING H570-PRO (Wi-Fi 6)
Chipset : Intel H570
Memory Slot : 4
Supported CPU : 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Generation : 10th/11th
Features : Enhanced power solution: 8+1 DrMOS power stages, six-layer PCB, ProCool socket
Warranty : 3 Years Replacement Warranty
Additional information
| Brand | Asus |
|---|---|
| Model | Asus TUF GAMING H570-PRO (Wi-Fi 6) |
| Chipset Brand | Intel |
| Chipset | Intel H570 |
| Sockets Supported | LGA1200 |
| Supported CPU | 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors |
| Generation | 10th/11th |
| Memory Type | DDR4 |
| Memory MHz | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 3 |
| PCI Express Slot | 1 x PCIe 4.0/3.0 x16 (x16 Mode), 1 x PCIe 3.0 x16 (x4 mode), 3 x PCIe 3.0 x1 |
| Audio Chipset. | Realtek ALC S1200A |
| Audio Channel | 7.1 |
| LAN Chipset | Realtek Ethernet |
| LAN Speed (Mbps) | 10/100/1000/2500 Mb/s |
| WiFi | Yes |
| WiFi Technology | Wi-Fi 6 802.11 a, b, g, n, ac, ax (2×2) |
| Bluetooth | Bluetooth 5.0 |
| USB Port | 1 x USB 3.2 Gen 2×2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 1 Type-C, 6 x USB 2.0 Type-A |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 6 |
| Thunderbolt | 1 |
| COM Port | 1 |
| CrossFire Support | No |
| Sli Support | No |
| RGB Support | Yes |
| RGB Sync | Aura Sync |
| RGB Connector | 2 x AURA RGB headers |
| Form Factor | ATX |
| BIOS Type | 192 (128+64) Mb Flash |
| BIOS Model | UEFI AMI BIOS |
| Supported Operating System | Windows 10 |
| Warranty | 3 Years Replacement Warranty |
| Feature | Enhanced power solution: 8+1 DrMOS power stages, six-layer PCB, ProCool socket, military-grade TUF components and Digi+ VRM for maximum durability. Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility. Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences. Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in. |
| Others | 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 2 x AURA Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x Front Panel Audio header, 5 x Audio jacks, 1 x Optical S/PDIF out port |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
